Shop LEVITON

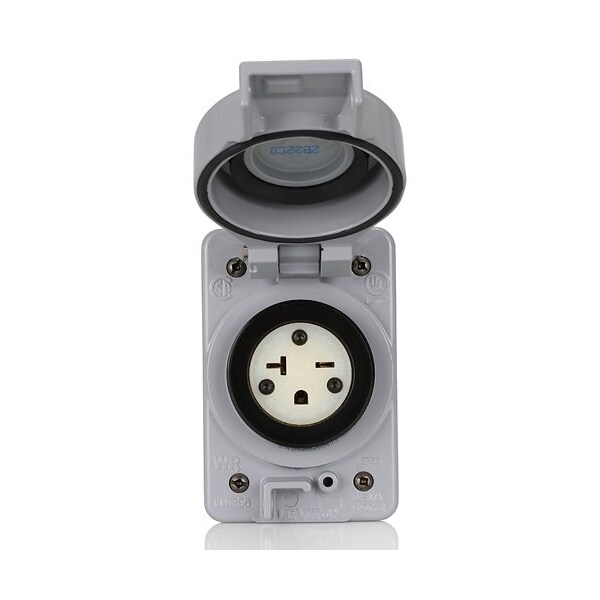

StrghtBladeRcptcl, 20A, 250VAC, Gry, Alum

  • Mfr # LNR96-4

  • Zoro # G822728721

product price:
$
166.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Mount Type
Flush
Number of Wall Plates Included
1
Horsepower Rating
1 hp
Receptacle Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNR96-4
Zoro #
G822728721
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Flange Width
4.5 in
Mount Hole Center-to-Center Height
3.3 in
Mount Hole Center-to-Center Width
1.9 in
Maximum Wire Size
10 AWG

Details

Phase
Single
Mount Type
Flush
Number of Wall Plates Included
1
Horsepower Rating
1 hp
Receptacle Type
Single
For Environment
Wet
Surge Protection
No
Market
Commercial, Industrial
Grade
General Use
Housing Color
Gray
Number of Poles
2
Wiring Method
Back
Standards
ANSI C-73, CSA C22.2 No. 42, IEC, NEMA WD-6, NOM-ANCE, UL 498
Number of Outlets
1
Cover Type
Flip-Up Cover
NEMA Receptacle Configuration
6-20R
AFCI
No
GFCI
No
Housing Material
Aluminum
Voltage Rating
250V AC
Minimum Operating Temperature
-40 Degrees C
Features
High-Performance TPV Components Withstand Extreme Temperatures, are UV Stabilized and Resistant to Water, Oils, and Other Chemicals, Industry Exclusive Variable Adjust, Watertight Strain Relief System Speeds Assembly and Provides More Reliable Performance Than Conventional Rubber Boot Type Systems, Plugs and Connectors are Submersible When Mated or with Protective Cap Installed (Connector Only)
Grounding
Grounded
Flange Type
Flanged
Current Rating
20 A
Number of Gangs
1
Wire Connection Type
Screw Terminals
IP Rating
IP66, IP67, IP68, IP69K
Contact Material
Brass
Number of Wires
3
Flange Shape
Rectangular
NEMA Enclosure Rating
6
Polarized
Yes
Shrouded
No
Maximum Operating Temperature
60 Degrees C
Item
Straight Blade Receptacle

Description

Straight Blade Receptacle, Cover Type Flip-Up Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Aluminum, Mount Type Flush, NEMA Enclosure Rating 6, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards ANSI C-73, CSA C22.2 No. 42, IEC, NEMA WD-6, NOM-ANCE, UL 498
