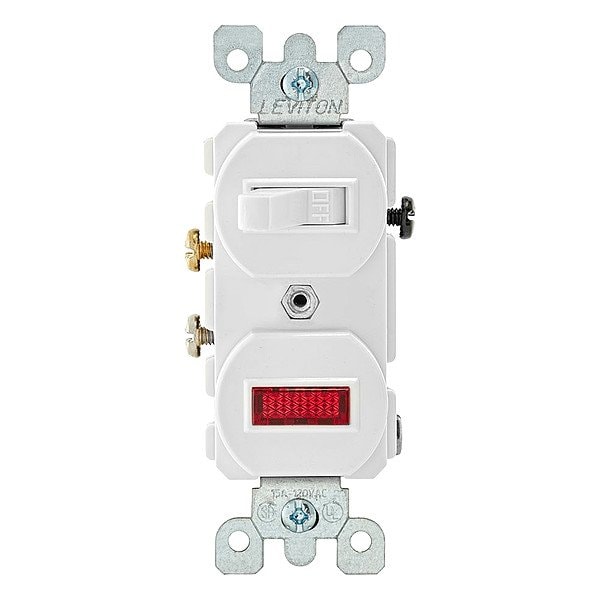

Wall Switch, 1/2 hp, Toggle, 15 A, White
Mfr # 5226-W
Zoro # G622729577
product price:Â
$
14.65
/ea
Key Features
Wiring Method
Side
Switch Function
Maintained
Minimum Wire Size
14 AWG
Overall Height
4.2 in
Switch Type
Single Pole
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5226-W
- Zoro #
- G622729577
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 14 AWG
- Overall Height
- 4.2 in
- Overall Width
- 1.6 in
- Maximum Wire Size
- 12 AWG
Details
- Wiring Method
- Side
- Switch Function
- Maintained
- Switch Type
- Single Pole
- Wire Connection Type
- Screw Terminals
- Housing Material
- Thermoplastic
- Number of Switches
- 1
- Illuminated
- No
- Minimum Operating Temperature
- -40 Degrees C
- Color
- White
- Horsepower Rating
- 1/2 hp
- Current Rating
- 15 A
- Voltage Rating
- 120V AC
- Maximum Operating Temperature
- 65 Degrees C
- Item
- Wall Switch
- Standards
- ANSI C-73, CSA C22.2 No. 111, CSA File No. 152105, NEMA WD-1, NEMA WD-6, NOM 057, UL 20
- Features
- Duplex Style Combination Switch
- Grounding
- Non-Grounded
- Market
- Commercial
Description
Wall Switch, Color White, Current Rating 15 A, Illuminated No, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Side, Horsepower Rating 1/2 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22.2 No. 111, CSA File No. 152105, NEMA WD-1, NEMA WD-6, NOM 057, UL 20, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Duplex Style Combination Switch, Grounding Non-Grounded
