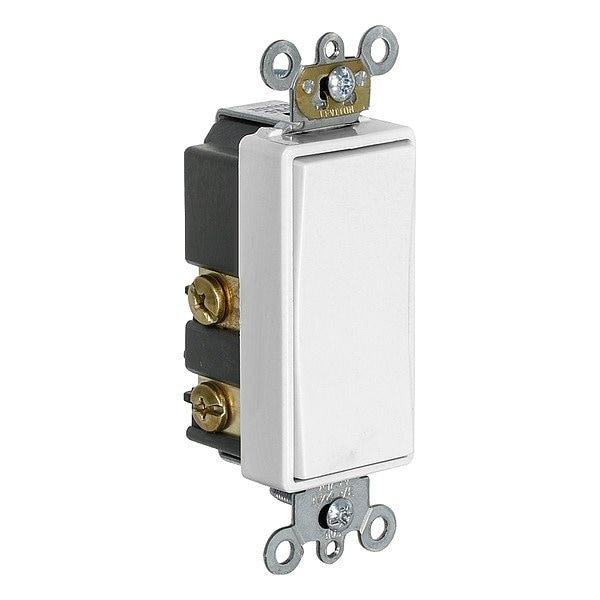

Wall Switch, Rocker, 3 A, White
Mfr # 56080-2W
Zoro # G122587745
product price:Â
$
59.49
/ea
Key Features
Switch Function
Momentary
Voltage Rating
24V AC/DC
Housing Material
Thermoplastic
Maximum Wire Size
10 AWG
Minimum Operating Temperature
-40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 56080-2W
- Zoro #
- G122587745
- UPC #
- 78477811641
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 14 AWG
Details
- Switch Function
- Momentary
- Voltage Rating
- 24V AC/DC
- Housing Material
- Thermoplastic
- Minimum Operating Temperature
- -40 Degrees C
- Features
- Commercial Specification Grade
- Illuminated
- No
- Switch Material
- Thermoplastic
- Number of Switches
- 1
- Grounding
- Grounded
- Switch Type
- Single Pole/Single Throw
- Strap Material
- Steel
- Current Rating
- 3 A
- Color
- White
- Wire Connection Type
- Screw Terminals
- Contact Material
- Silver Alloy
- Market
- Commercial
- Item
- Wall Switch
- Standards
- CSA Certified, cULus Listed, FED SPEC W-S-896, UL Listed
- Wiring Method
- Back/Side
- Maximum Operating Temperature
- 65 Degrees C
Description
Wall Switch, Color White, Current Rating 3 A, Illuminated No, Pilot Light No, Switch Function Momentary, Switch Type Single Pole/Single Throw, Voltage Rating 24V AC/DC, Wiring Method Back/Side, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards CSA Certified, cULus Listed, FED SPEC W-S-896, UL Listed, Strap Material Steel, Switch Style Rocker, Wire Connection Type Screw Terminals, Contact Material Silver Alloy, Features Commercial Specification Grade
