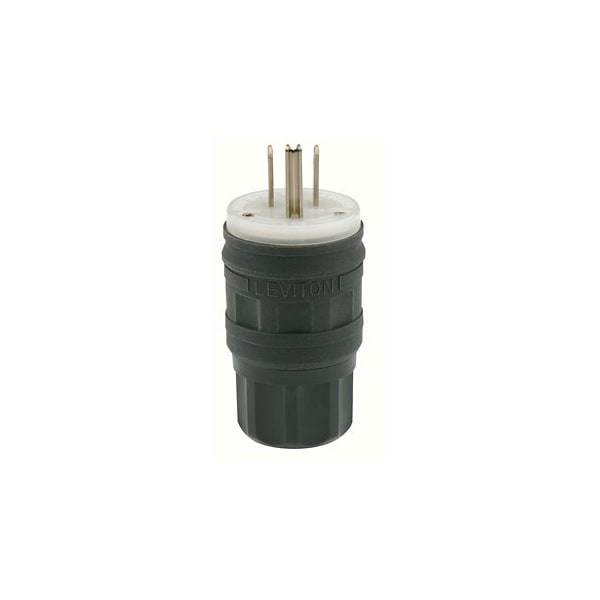

Watertight Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black
Mfr # 14W47-B
Zoro # G915864718
product price:Â
$
27.49
/ea
Key Features
NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 14W47-B
- Zoro #
- G915864718
- UPC #
- 078477012970
- Country of Origin
- Mexico
Dimensions
- Length
- 3.53 in
- For Maximum Cable Diameter
- 0.655 in
- For Minimum Cable Diameter
- 3/8 in
- Body Length
- 3.53 in
- Maximum Wire Size
- 10 AWG
- Face Diameter
- 1.62 in
- Minimum Wire Size
- 18 AWG
- Outside Diameter
- 1.62 in
- Overall Length
- 3.53 in
- Wire Rope Length
- 3.53 in
Description
Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, IP Rating IP66, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Corrosion Resistant, Watertight, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.62 in
