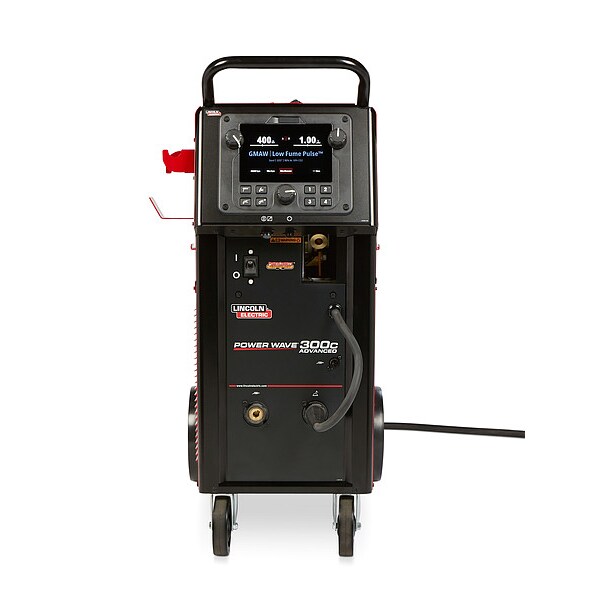

Lincoln Electric Multiprocess Welder, Power Wave 300C, Phase Single-/Three-Phase K4488-1 - main

Multiprocess Welder, Power Wave 300C, Phase Single-/Three-Phase

  • Mfr # K4488-1

  • Zoro # G010133238

product price:  $20,589.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Series
Power Wave 300C
Phase
Single/Three
Input Voltage
200/208/220/230/380/415/460/575V AC
Includes
10 ft Input Power Cord, 10 ft Work Lead, Harris Flowmeter/Regulator and Hose Kit, Magnum PRO Curve 300 Gun Ready-Pak, Power Wave 300C Advanced, 0.035/0.045 in Combination V Groove Drive Roll
MIG Welding Minimum Output Current
40 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K4488-1
Zoro #
G010133238
UPC #
015082869827
Country of Origin
United States

Dimensions

Overall Height
39.67 in
Power Cord Length
10 ft
Overall Width
20.65 in
Maximum Wire Diameter
0.025 in (Solid), 0.03 in (Aluminum), 0.035 in (Flux-Cored)
Minimum Wire Diameter
0.045 in (Solid), 0.052 in (Flux-Cored), 3/64 in (Aluminum)
Overall Depth
39.6 in
For Minimum Material Thickness
12 ga (Copper), 12 ga (Nickel Alloys), 12 ga (Silicon Bronze), 14 ga (Aluminum), 22 ga (Stainless Steel), 22 ga (Steel)
For Maximum Material Thickness
1/2 in (Stainless Steel), 1/2 in (Steel), 3/8 in (Aluminum), 3/8 in (Copper), 3/8 in (Nickel), 3/8 in (Silicon Bronze)
For Aluminum Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
14 ga
Wire Diameter Aluminum - Minimum
0.046875 in
For Stainless Steel Thickness - Maximum
1/2 in
Wire Diameter Flux-Cored - Minimum
0.052 in
Wire Diameter Aluminum - Maximum
0.03 in
For Stainless Steel Thickness - Minimum
22 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Solid - Minimum
0.045 in
For Steel Thickness - Minimum
22 ga
For Steel Thickness - Maximum
1/2 in
Wire Diameter Solid - Maximum
0.025 in

Details

Item
Multiprocess Welder
Series
Power Wave 300C
Phase
Single/Three
Input Voltage
200/208/220/230/380/415/460/575V AC
Includes
10 ft Input Power Cord, 10 ft Work Lead, Harris Flowmeter/Regulator and Hose Kit, Magnum PRO Curve 300 Gun Ready-Pak, Power Wave 300C Advanced, 0.035/0.045 in Combination V Groove Drive Roll
MIG Welding Minimum Output Current
40 A
Minimum Wire Feed Speed
50 in/min
Plug Type
Bare Leads
TIG Welding Output @ Duty Cycle
300 A @ 22 V, 100%, 325 A @ 23 V, 40%
Open Circuit Voltage
70 V DC
Max. Input Current
35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
TIG Arc Start Feature
High Frequency Start
Input Frequency
50/60 Hz
Maximum Wire Feed Speed
800 in/min
Power Cord Included
Yes
Weight
226 lb
Application
General Fabrication
MIG Welding Output @ Duty Cycle
280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
TIG Welding Maximum Output Current
325 A (Single-Phase/Three-Phase)
Welding Mode
CC/CV
MIG Welding Maximum Output Current
350 A
For Wire Type
Aluminum, Flux-Cored, Solid
TIG Welding Minimum Output Current
300 A (Single-Phase/Three-Phase)
Standards
CSA Standards
Stick Welding Minimum Output Current
280 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Effective Input Current
35/32/19.5/16/14 A (Single-Phase/Three-Phase/100% Duty Cycle), 44/40/25/20/16.5 A (Single-Phase/Three-Phase/40% Duty Cycle)
Polarity
AC/DC
Amperage Range
14 to 44 A
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
TIG Arc Control Feature
Adjustable AC Balance, Adjustable AC Frequency
Stick Welding Output @ Duty Cycle
280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
Color
Red
Features
Advanced Connectivity and Control, Best-in-Class Performance, Ready-to-Run, Smart Fan Operation
Stick Welding Maximum Output Current
325 A
Remote Connection Type
12-Pin (Lincoln)
For Material Type
Aluminum, Copper, Nickel Alloys, Silicon Bronze, Stainless Steel, Steel
Model
Power Wave(R) 300C Advanced
Rated Output @ Duty Cycle (MIG)
280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
Amperage TIG - Maximum
325 A
Amperage Stick - Minimum
280 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (Stick)
280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
Maximum Input Current
35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
Amperage MIG - Minimum
40 A
Welding Power Source Type
CC/CV
Amperage Stick - Maximum
325 A
Amperage MIG - Maximum
350 A
Amperage TIG - Minimum
300 A
Rated Output @ Duty Cycle (TIG)
300 A @ 22 V, 100%, 325 A @ 23 V, 40%

Description

Multiprocess Welder, Series Power Wave 300C, Input Voltage 200/208/220/230/380/415/460/575V AC, Phase Single/Three, Welding Mode CC/CV, Polarity AC/DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 325 A, TIG Welding Maximum Output Current 325 A (Single-Phase/Three-Phase), MIG Welding Maximum Output Current 350 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
