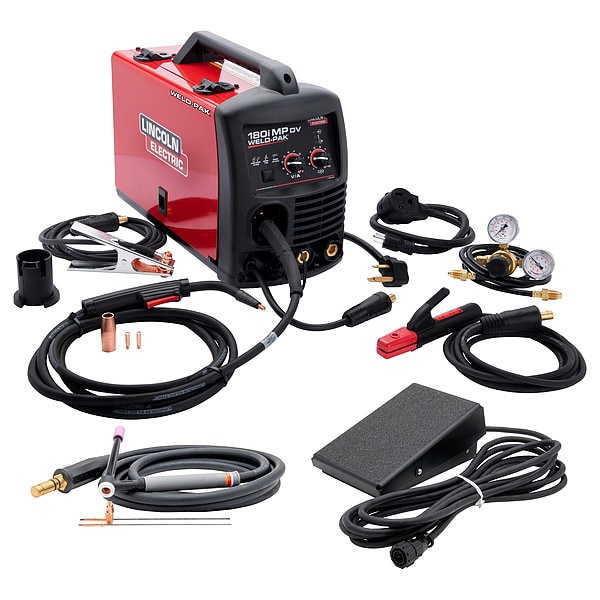

Lincoln Electric Multiprocess Welder, WELD-PAK 180i, Phase Single-Phase , 120V, 230V , IncludesTIG Kit K5387-5 - main

Multiprocess Welder, WELD-PAK 180i, Phase Single-Phase , 120V, 230V , IncludesTIG Kit

  • Mfr # K5387-5

  • Zoro # G609768933

product price:  $1,655.99
/ea
Free Shipping & Returns

Key Features

Series
WELD-PAK 180i
Phase
Single
Input Voltage
120/230V AC
Includes
TIG Kit
Features
Conveniently plugs into household 230 volt or120 volt power with included adaptor., Lightweight and portable at 34.5 lbs, Multi-Process unit capable of MIG, TIG, and Stick welding
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K5387-5
Zoro #
G609768933
UPC #
015082696300
Country of Origin
China

Dimensions

For Minimum Material Thickness
24 ga
Maximum Wire Diameter
.035
For Maximum Material Thickness
5/16 in
Minimum Wire Diameter
.025 in Mild Steel
Overall Width
8.9 in
Overall Depth
18.1 in
Overall Height
13.6 in
Wire Diameter Solid - Minimum
0.025 in

Details

Item
Multiprocess Welder
Series
WELD-PAK 180i
Phase
Single
Input Voltage
120/230V AC
Includes
TIG Kit
Features
Conveniently plugs into household 230 volt or120 volt power with included adaptor., Lightweight and portable at 34.5 lbs, Multi-Process unit capable of MIG, TIG, and Stick welding
Model
K5387-5
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Home, Hobby, Shop, Farm, Autobody
Color
Red
Minimum Wire Feed Speed
40 in/min
Plug Type
230V 6-50P with a 6-50R to 5-15P 120V adapter included
Weight
35 lb
TIG Welding Output @ Duty Cycle
165 A @ 16.6 V, 30%
TIG Welding Maximum Output Current
165 A
MIG Welding Output @ Duty Cycle
165 A @ 22 V, 30%
Open Circuit Voltage
75 V
Max. Input Current
180A @ 230V
Maximum Wire Feed Speed
500 in/min
TIG Welding Minimum Output Current
10 A
MIG Welding Minimum Output Current
20 A
MIG Welding Maximum Output Current
180 A
Effective Input Current
165A/22V/30% MIG165A/16.6V/30% TIG160A/26.4V/25% Stick
Stick Welding Maximum Output Current
160 A
Stick Welding Minimum Output Current
25 A
Welding Mode
CC/CV
For Material Type
Aluminum, Stainless Steel, Steel
Polarity
DC
Stick Welding Output @ Duty Cycle
160 A @ 26.4 V, 25%
Amperage TIG - Minimum
10 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
165 A @ 16.6 V, 30%
Amperage MIG - Maximum
180 A
Rated Output @ Duty Cycle (Stick)
160 A @ 26.4 V, 25%
Amperage TIG - Maximum
165 A
Maximum Input Current
180A @ 230V
Welding Power Source Type
CC/CV
Amperage MIG - Minimum
20 A
Amperage Stick - Maximum
160 A
Rated Output @ Duty Cycle (MIG)
165 A @ 22 V, 30%
Amperage Stick - Minimum
25 A

Description

Multiprocess Welder, Series WELD-PAK 180i, Input Voltage 120/230V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 160 A, TIG Welding Maximum Output Current 165 A, MIG Welding Maximum Output Current 180 A, Maximum Wire Diameter .035, Maximum Wire Feed Speed 500 in/min, Model K5387-5, Stick Welding Output @ Duty Cycle 160 A @ 26.4 V, 25 Percent

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
