Shop LINCOLN ELECTRIC

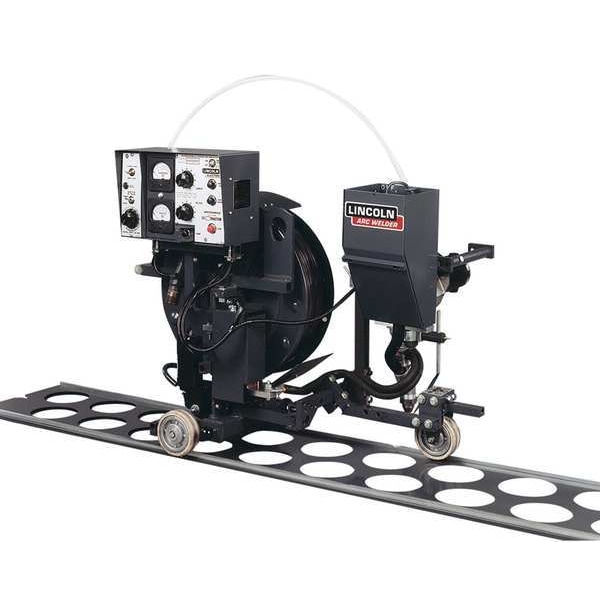

Self-Propelled Wire Feeder, LT-7 Series, 115VAC

  • Mfr # K227-1

  • Zoro # G9824166

product price:  $31,134.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Input Voltage
115V AC
Series
LT-7
Wire Size (In.)
3/32-3/16
Type
Self-Propelled
Hz
50/60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K227-1
Zoro #
G9824166
UPC #
015082062150
Country of Origin
United States

Dimensions

Wire Size (In.)
3/32-3/16
Overall Width (In.)
33 in
Overall Height (In.)
27 1/2 in
Overall Depth (In.)
14 in
Maximum Wire Diameter
3/16 in (Soild-Wire)
Overall Height
27.5 in
Power Cord Length
25 ft
Overall Depth
14 in
Minimum Wire Diameter
3/32 in (Soild-Wire)
Overall Width
33 in
Wire Diameter Solid - Minimum
0.09375 in
Wire Diameter Solid - Maximum
0.1875 in

Details

Item
Tractor Wire Feeder
Input Voltage
115V AC
Series
LT-7
Type
Self-Propelled
Hz
50/60
Features
Continuous Vertical Adjustment 1-1/2 in, Flux Hopper Capacity of 15 lb, Reel Holds 60 lb Solid Wire Coils
Output Range (Amps)
1,100
Phase
Single
Application
Beam, Bridge Deck Installation, Column Fabrication, For Ship and Barge Building, Long Seams on Heavy Weldments, Storage Tank Erection
Duty Cycle
100 %
Rated Output
600 A @ 100 V
Compatible with Brand
Lincoln
Minimum Wire Feed Speed
2.5 m/min
Power Cord Included
Yes
Weight
130 lb
For Wire Type
Solid
Input Frequency
50/60 Hz
Compatible with Model
K1275, K1288-17, K1288-18, K1288-22, K1386-3
Compatible with Series
Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process
Welding Processes
Submerged Arc
Maximum Wire Feed Speed
10.2 m/min
Includes
25 ft. Control Cable
Model
K227-1
Process
Submerged Arc Welding (SAW)
Compatible Welder Model
K1275, K1288-17, K1288-18, K1288-22, K1386-3
Compatible Brand
Lincoln Electric
Compatible Welder Series
Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process
Wire Feeder Model
K227-1
Wire Feeder Series
LT-7
Output Current Range
600 A

Description

Tractor Wire Feeder, Compatible with Model K1275, K1288-17, K1288-18, K1288-22, K1386-3, Compatible with Series Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process, Compatible with Brand Lincoln, For Wire Type Solid, Input Frequency 50/60 Hz, Input Voltage 115V AC, Maximum Wire Diameter 3/16 in (Soild-Wire), Maximum Wire Feed Speed 10.2 m/min, Minimum Wire Diameter 3/32 in (Soild-Wire), Minimum Wire Feed Speed 2.5 m/min, Phase Single, Rated Output 600 A @ 100 V
