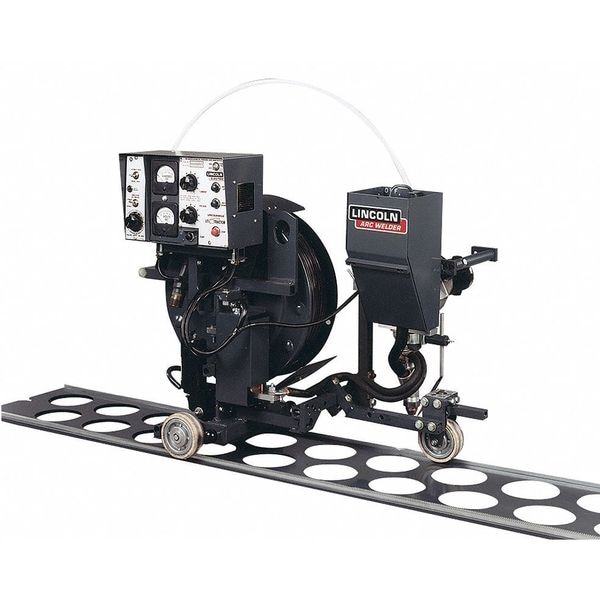

Lincoln Electric Self-Propelled Wire Feeder with Track, LT-7 Series, 115VAC K395-1 - main

Self-Propelled Wire Feeder with Track, LT-7 Series, 115VAC

  • Mfr # K395-1

  • Zoro # G6917897

product price:  $30,480.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Input Voltage
115V AC
Series
LT-7
Wire Size (In.)
3/32-3/16
Type
Self-Propelled
Overall Depth (In.)
14 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K395-1
Zoro #
G6917897
UPC #
015082065489
Country of Origin
United States

Dimensions

Wire Size (In.)
3/32-3/16
Overall Depth (In.)
14 in
Overall Height (In.)
27 1/2 in
Overall Width (In.)
33 in
Overall Width
33 in
Maximum Wire Diameter
3/16 in (Soild-Wire)
Overall Height
27.5 in
Overall Depth
14 in
Power Cord Length
25 ft
Minimum Wire Diameter
3/32 in (Soild-Wire)
Wire Diameter Solid - Maximum
0.1875 in
Wire Diameter Solid - Minimum
0.09375 in

Details

Item
Tractor Wire Feeder
Input Voltage
115V AC
Series
LT-7
Type
Self-Propelled
Rated Output
600 A @ 100 V
Phase
Single
Application
Beam, Bridge Deck Installation, Column Fabrication, For Ship and Barge Building, Long Seams on Heavy Weldments, Storage Tank Erection
Duty Cycle
100 %
Hz
50/60
Output Range (Amps)
1,100
Features
Continuous Vertical Adjustment 1-1/2 in, Flux Hopper Capacity of 15 lb, Reel Holds 60 lb Solid Wire Coils
For Wire Type
Solid
Welding Processes
Submerged Arc
Includes
25 ft. Control Cable
Compatible with Brand
Lincoln
Compatible with Series
Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process
Minimum Wire Feed Speed
2.5 m/min
Weight
130 lb
Maximum Wire Feed Speed
10.2 m/min
Compatible with Model
K1275, K1288-17, K1288-18, K1288-22, K1386-3
Input Frequency
50/60 Hz
Power Cord Included
Yes
Model
K395-1
Compatible Brand
Lincoln Electric
Wire Feeder Series
LT-7
Compatible Welder Model
K1275, K1288-17, K1288-18, K1288-22, K1386-3
Wire Feeder Model
K395-1
Output Current Range
600 A
Compatible Welder Series
Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process
Process
Submerged Arc Welding (SAW)

Description

Tractor Wire Feeder, Compatible with Model K1275, K1288-17, K1288-18, K1288-22, K1386-3, Compatible with Series Idealarc DC-1000, Idealarc DC-1500, Idealarc DC600 Multi-Process, Compatible with Brand Lincoln, For Wire Type Solid, Input Frequency 50/60 Hz, Input Voltage 115V AC, Maximum Wire Diameter 3/16 in (Soild-Wire), Maximum Wire Feed Speed 10.2 m/min, Minimum Wire Diameter 3/32 in (Soild-Wire), Minimum Wire Feed Speed 2.5 m/min, Phase Single, Rated Output 600 A @ 100 V
