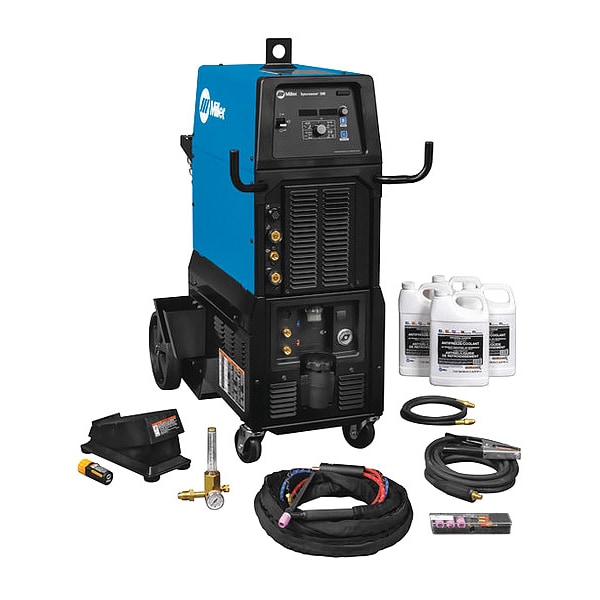

Miller Electric TIG Welder, Syncrowave 300 Series, 208V AC, 220/230/240V AC, 460/480V AC, 300 Max. Output Amps 951872 - main

TIG Welder, Syncrowave 300 Series, 208V AC, 220/230/240V AC, 460/480V AC, 300 Max. Output Amps

  • Mfr # 951872

  • Zoro # G0194059

product price:  $16,084.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.012 in to 1/2 in
Aluminum - Material Thickness
0.015 in to 3/8 in
Input Voltage
208/220/230/240/460/480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
951872
Zoro #
G0194059
UPC #
715959678001
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.012 in to 1/2 in
Aluminum - Material Thickness
0.015 in to 3/8 in
Overall Depth
36.59 in
Overall Width
20.5 in
Overall Height
43.91 in
For Maximum Material Thickness
1/2 in (Mild Steel), 3/8 in (Aluminum)
For Minimum Material Thickness
0.012 in (Mild Steel), 0.015 in (Aluminum)
For Steel Thickness - Maximum
1/2 in
For Aluminum Thickness - Maximum
3/8 in
For Steel Thickness - Minimum
3/250 in
For Aluminum Thickness - Minimum
3/200 in
For Stainless Steel Thickness - Maximum
1/2 in
For Stainless Steel Thickness - Minimum
3/250 in

Details

Welder Industrial Class
Medium
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/220/230/240/460/480V AC
Rated Output
300A/22V @ 30% Duty Cycle, 210A/18V @ 60% Duty Cycle
Welder Max. Output Amps
300
Welder Min. Output Amps
5
Welder Duty Cycle
60 %
Series
Syncrowave 300
Standards
CSA, ISO
Application
Automotive, Light and Heavy Industrial Manufacturing, Maintenance and Repair, Pipe and Tube Fabrication, Precision Fabrication, Shipbuilding, Vocational
Includes
Coolant, Coolmate 3S, Running Gear, Weldcraft W-280 Torch Kit, Wireless Remote Foot Control
Welder Input Phase
1 or 3
Power Source Weight
123 lb
Phase
Single/Three
Welder Input Hz
50/60
Welded Material
Aluminum, Mild Steel, Stainless Steel
Polarity
AC/DC
Features
Wireless Remote Compatible
Input (Amps)
47/4.1
Input Frequency
50/60 Hz
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Stick Welding Minimum Output Current
5 A
Color
Blue
Amperage Range
5 to 300 A
Stick Welding Output @ Duty Cycle
125 A @ 25 V, 100%, 160 A @ 26.4 V, 60%, 230 A @ 28.4 V, 30%
Pulse Frequency
0.1 to 150 pulses/second
Plug Type
Bare Leads
TIG Welding Maximum Output Current
300 A
TIG Welding Output @ Duty Cycle
175 A @ 17 V,100%, 210 A @ 18.4 V, 60%, 300 A @ 22 V, 30%
TIG Welding Minimum Output Current
5 A
For Material Type
Aluminum, Stainless Steel, Steel
Weight
123 lb
Max. Input Current
27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase)
Welding Mode
CC
Open Circuit Voltage
60V DC
Remote Connection Type
14-Pin (Miller)
Stick Welding Maximum Output Current
300 A
Remote Control
Wireless Foot Control Included
Model
951830
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
300 A
Amperage TIG - Minimum
5 A
Rated Output @ Duty Cycle (TIG)
175 A @ 17 V,100%, 210 A @ 18.4 V, 60%, 300 A @ 22 V, 30%
Maximum Input Current
27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase)
Rated Output @ Duty Cycle (Stick)
125 A @ 25 V, 100%, 160 A @ 26.4 V, 60%, 230 A @ 28.4 V, 30%
Amperage Stick - Maximum
300 A
Welding Power Source Type
CC
Amperage Stick - Minimum
5 A

Description

TIG Welder, For Material Type Aluminum, Stainless Steel, Steel, For Maximum Material Thickness 1/2 in (Mild Steel), 3/8 in (Aluminum), For Minimum Material Thickness 0.012 in (Mild Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Syncrowave 300, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 5 A
