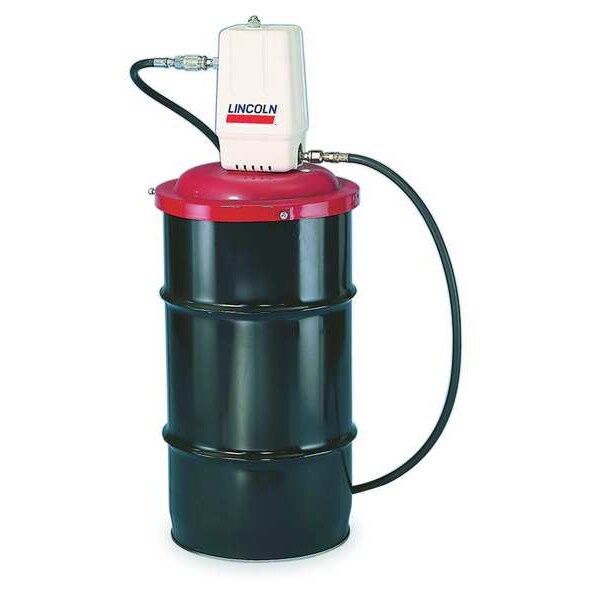

Lincoln Industrial Oil Pump Transfer System, Air-Operated 2437 - main

Oil Pump Transfer System, Air-Operated

  • Mfr # 2437

  • Zoro # G2595135

product price: $1,549.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Operated
Air Motor Size (In.)
2
Pump Ratio
3:1
Container Size
16 gal.
Consumption @ 100 PSI
11 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2437
Zoro #
G2595135
UPC #
095992099392
Country of Origin
United States

Dimensions

Air Motor Size (In.)
2
Container Size
16 gal.
Outlet Size
1/2" NPT
Hose Inside Dia.
1/2 in
Hose Length
5 ft
Hose Outside Dia.
13/16 in
Suction Tube Length
7 1/2 in
For Container Size
16 gal
Air Inlet Size
1/4 NPT
Bung Connection Dia.
2 in
Overall Length
44 1/8 in

Details

Item
Air Operated Drum Pump
Type
Air-Operated
Pump Ratio
3:1
Consumption @ 100 PSI
11 cfm
Working Flow Max. (GPM)
6
Ounces per Stroke
2.08
Outlet Pressure Max. (PSI)
600
Max. Output
6 gpm
Min. Air Inlet Pressure
40
Includes
Air Coupler, Air Hose, Air Nipple, Lubricant Hose, Volume Elbow
Max. Air Inlet PSI
200
Fluid Inlet Thread (In.)
1 NPT
Air Inlet (In.)
1/4 NPT
Pump for Multiple Outlets
Yes
Pump Connection Type
FNPT
Discharge Tube Outlet ID
1/2 in
Ratio
3:1
Max. Air Pressure
200 psi
For Media Type
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
Includes Suction Tube
Yes
Includes Discharge Hose
Yes
Suction Tube Material
Steel
Wetted Materials
Brass, Copper, Buna-N, Polyurethane, Steel
Pump Connection ID
1/2 in
Min. Fluid Temp.
30 Degrees F
Max. Oil Flow
6 gpm
Diesel Exhaust Fluid Compatible
No
Metered
No
Suction Tube OD
1 21/32 in
Seal Material
Buna-N
Discharge Tube Outlet OD
13/16 in
Compatible Chemicals
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
Power Source
Air
Discharge Connection Type
NPT
Includes Bung Adapter
Yes
Includes Nozzle
No
Air Consumption
11 cfm
Includes Spout
No
For Container Type
Drum
Min. Air Pressure
40 psi
Runs Dry
No
Food Grade
No
Self-Priming
Yes
Variable Speed
No
Max. Flow Rate
6 gpm
Max. Fluid Temp.
120 Degrees F
Housing Material - Pumps
Steel
Not Recommended Chemicals
Diesel Fuel, Grease, Kerosene
Explosion Proof
No
Gear Lube
R
Grease
X
Adapter Connection Type
FNPT
Max. Outlet Pressure
600 psi
Features
Backed by the Most Extensive, Qualified Service Network in the Industry, Ball Check Valve Helps Keep Pump Primed, Designed for Greater Cycle Rates, Exceeds Maximum Limits Recommended for Competitive Pumps, Lightweight, Corrosion-Resistant Zinc Head Casting Design Incorporates Uniform Wall Thickness, Keeps Pumping While Other Pumps Slow down or Stop Due to Icing, Pneumatically Assisted Mechanical Air Valve Assures Positive Tripping, Precision-Machined, Hardened Steel Slide Valve for Longer Life, Springless Air Motor Construction Prevents Premature Pump Failure Due to Spring Fatigue

Description

Air Drum Pump, Max. Air Pressure 200 psi, Spout Connection Size Not Applicable, Suction Tube Material Steel, Self-Priming Yes, Overall Length 44 1/8 in, Explosion Proof No, Discharge Connection Type NPT, Features Corrosion-Resistant Zinc Head Casting, Hardened Steel Slide Valve, Reduced Icing, Lightweight, Mechanical Air Valve Assures Positive Tripping, Precision-Machined, Springless Air Motor Construction, Spout Length Not Applicable, Food Grade No, Bung Connection Dia. 2 in
