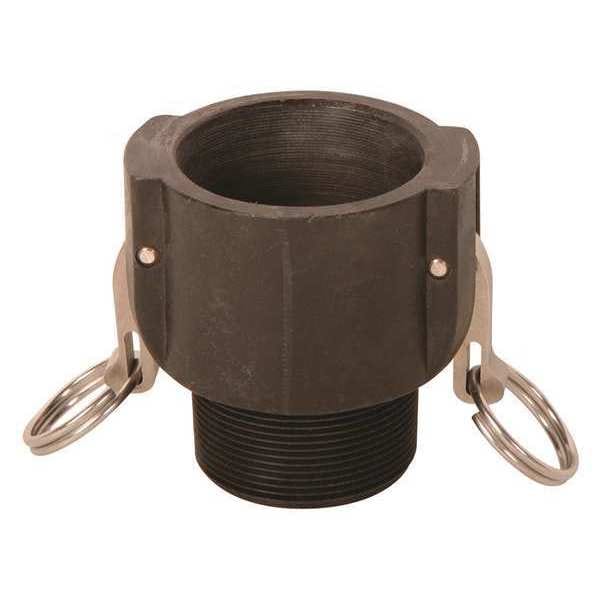

Coupler, 2 in. Dia., 3 in. W, 4 in. H

  • Mfr # 900725

  • Zoro # G4022271


product price: $36.49
/ea

Key Features

For Use With
950390-25M, Mfr. No. 950390-12M
Adapter Material
Polypropylene
Max. Liquid Temp.
86 Degrees F
DEF Compatible
Yes
Width
3"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
900725
Zoro #
G4022271
UPC #
-
Country of Origin
Italy

Dimensions

Width
3"
Diameter
2"
Manufacturers Warranty Length
30 day
Adapter Dia.
2"
Height
4"
Hose Inside Dia.
3/4 in
Tote Connection Size
2 in

Details

Item
Coupler
For Use With
950390-25M, Mfr. No. 950390-12M
Adapter Material
Polypropylene
Max. Liquid Temp.
86 Degrees F
DEF Compatible
Yes
Wetted Materials
EPDM, Polypropylene
Adapter Type
2" Camlok
Seal Material
EPDM
Agency Compliance
ISO222241-3
Diesel Exhaust Fluid Compatible
Yes
Outlet Angle
0 Degrees
Max. Operating Pressure
100 psi
Not Recommended Chemicals
Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Min. Fluid Temp.
17 Degrees F
Max. Fluid Temp.
150 Degrees F
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Compatible Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Body Material
Polypropylene
Gear Lube
NT
Grease
NT

Description

Coupler, Body Material Polypropylene, Seal Material EPDM, Tote Connection Size 2 in, Hose Inside Dia. 3/4 in, Max. Fluid Temp. 150 Degrees F, Min. Fluid Temp. 17 Degrees F, Max. Operating Pressure 100 psi, Outlet Angle 0 Degrees , Diesel Exhaust Fluid Compatible Yes, Wetted Materials EPDM, Polypropylene, Agency Compliance ISO222241-3, For Use With 950390-25M, Mfr. No. 950390-12M
