For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid

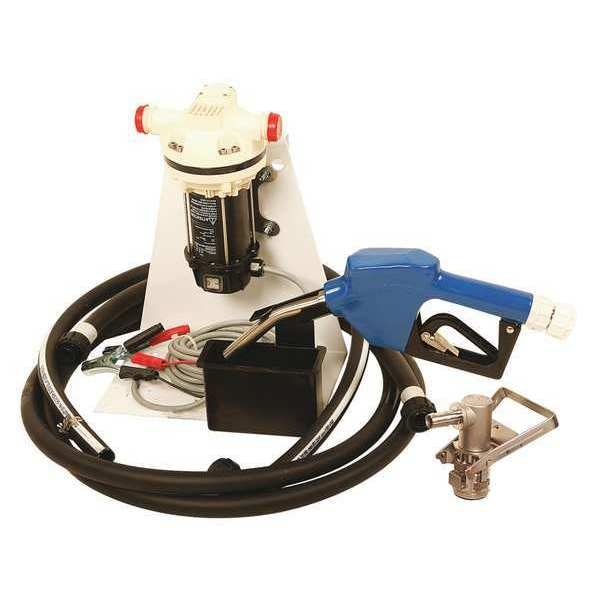

Item Electric Drum Pump
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Side Mount Hanger
Max. Viscosity 10 cps
Motor Type 2 Pole
Power Source Corded Electric
Wetted Materials EPDM, Polypropylene, Stainless Steel
Voltage 12VDC
Motor Enclosure IP55
Metered Yes
Motor RPM 2,600 RPM
Hose Material Peroxide Cured EPDM
Housing Material Polypropylene
Max. GPM for Water 8
Gasket Material EPDM
Seal Material EPDM
Nozzle Type Automatic
GPM 8
Bypass Valve Internal
Duty Cycle Intermittent
pH Range 5.0 to 10
Amps 3.5
Inlet 3/4"
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Agency Compliance ISO
Duty Intermittent
Pump Design Nutating Diaphragm
Self-Priming Yes
Nozzle Material Stainless Steel
Adapter Material 316 Stainless Steel
Suction Lift 6 ft.
Seal Type Mechanical
Max. Specific Gravity 1.09
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Max. Liquid Temp. 104 Degrees F
Max. Pressure 29 psi
HP 1/10
Pressure Range 23 psi
Bearing Type Sealed Ball
Phase Single
Max. Temp. 104 Degrees F
Features Dispenses 8 gpm
Adapter Type RSV
Hz 60
Max. Head 48 ft.
Pump Body Material Polypropylene
Shaft Material Stainless Steel
Full Load Amps 22.0 A
Suction Tube Material EPDM
Includes Bung Adapter No
Min. Fluid Temp. 17 Degrees F
Max. Flow Rate 8 gpm
Pump Connection Type Hose Barb
Pump Connection OD 1 in
Suction Tube OD 1 in
Food Grade No
Spout Connection Type Integral to Nozzle
Discharge Tube Outlet ID 3/4 in
Hose Tube Material EPDM
Variable Speed No
Discharge Connection Type Hose Barb
Includes Discharge Hose Yes
Includes Spout Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Hose Cover Material Thermal Plastic
Discharge Tube Outlet OD 1 in
Max. Fluid Temp. 104 Degrees F
Plug Type Spring Clamp
Motor HP 1/10 hp
Diesel Exhaust Fluid Compatible Yes
Includes Suction Tube Yes
Housing Material - Pumps Polypropylene
Includes Nozzle Yes
Max. Head Pressure 23 psi
Suction Tube ID 3/4 in Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Spout Material 316 Stainless Steel
Noise Level 70 dB
Nozzle Operation Automatic
Max. Oil Flow 8 gpm
Number of Phases 1
For Container Type Drum, Tote
Runs Dry Yes
Max. Head - Pumps 48 ft
Grease NT
Rated Voltage 12 V DC
Max. Outlet Pressure 23 psi
Explosion Proof No
Gear Lube NT
Maximum Outlet Pressure 23 psi
Motor Enclosure Design Totally Enclosed Non-Ventilated
Maximum Flow Rate 8 gpm
Motor Speed 2,600 RPM
Maximum Oil Flow 8 gpm
Adapter Connection Standard Buttress
Maximum Fluid Temperature 104 Degrees F
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Nozzle Fluid Compatibility DEF
Maximum Head Pressure 23 psi
Maximum Head 48 ft
Static Protection Not Groundable
Wetted Material EPDM/Polypropylene/Stainless Steel
Standards ISO
Pump Connection ID 3/4 in
Minimum Fluid Temperature 17 Degrees F
Motor Horsepower 1/10 hp
Pump Technology Diaphragm
Housing Finish Powder Coated
Meter Type Included No Meter Included
Hazardous Location Class Not Rated
Full Load Current 22 A
Maximum Viscosity 10 cps
Mount Type Foot
Power Source - TS Only Corded Electric
