Voltage 115VAC
Application Agriculture; Automotive; Construction; Farming; Industrial; Marine; Trucking
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
RPM 1730
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

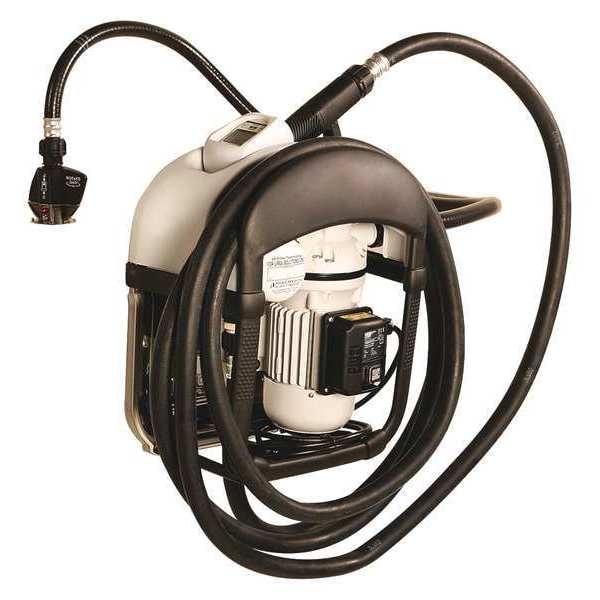

Item Electric Drum Pump
Bypass Valve Internal
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Nozzle Type Automatic
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Duty Cycle Intermittent
Metered Yes
Pressure Range 23 psi
Nozzle Material Polypropylene/Stainless Steel
Includes Drip Cup, Hanger Bracket, Nozzle Holder
Standards ISO
Bearing Type Sealed Ball
Motor Type 2 Pole
Agency Compliance ISO
Wetted Materials EPDM, Polypropylene, Stainless Steel
Motor Enclosure IP55
Spout Connection Type Integral to Nozzle
Includes Spout Yes
Discharge Connection Type Hose Barb
Includes Discharge Hose Yes
Includes Suction Tube Yes
Noise Level 70 dB
Spout Material 316 Stainless Steel
Number of Phases 1
Diesel Exhaust Fluid Compatible Yes
Suction Tube OD 1 in
Max. Head - Pumps 48 ft
For Container Type Drum, Tote
Includes Bung Adapter No
Max. Flow Rate 8 gpm
Max. Fluid Temp. 104 Degrees F
Nozzle Operation Automatic
Suction Tube ID 3/4 in
Min. Fluid Temp. 17 Degrees F
Motor HP 1/10 hp
Max. Oil Flow 8 gpm
Runs Dry Yes
Pump Connection Type Hose Barb
Pump Connection OD 1 in
Full Load Amps 4.5 A
Suction Tube Material EPDM
Hose Tube Material EPDM
Discharge Tube Outlet OD 1 in
Hose Cover Material Thermal Plastic
Max. Head Pressure 23 psi Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Includes Nozzle Yes
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Motor RPM 1,750 RPM
Food Grade No
Power Source Corded Electric
Discharge Tube Outlet ID 3/4 in
Housing Material - Pumps Polypropylene
Variable Speed No
Frequency (Hz) 60 Hz
Grease NT
Rated Voltage 115 V AC
Max. Outlet Pressure 23 psi
Explosion Proof No
Gear Lube NT
Static Protection Not Groundable
Maximum Oil Flow 8 gpm
Maximum Viscosity 10 cps
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Head Pressure 23 psi
Maximum Flow Rate 8 gpm
Meter Unit Of Measure Gallons, Liters
Maximum Outlet Pressure 23 psi
Hazardous Location Class Not Rated
Adapter Connection Standard Buttress
Maximum Fluid Temperature 104 Degrees F
Meter Type Included Digital
Nozzle Fluid Compatibility DEF
Maximum Head 48 ft
Housing Finish Powder Coated
Phase Single
Pump Connection ID 3/4 in
Full Load Current 4.5 A
Mount Type Foot
Motor Speed 1,750 RPM
Plug Type NEMA 5-15-P
Motor Horsepower 1/10 hp
Minimum Fluid Temperature 17 Degrees F
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Frequency 60 Hz
Motor Enclosure Design Totally Enclosed Fan Cooled
Pump Technology Diaphragm
Power Source - TS Only Corded Electric
