Voltage 115VAC
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
RPM 1730
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

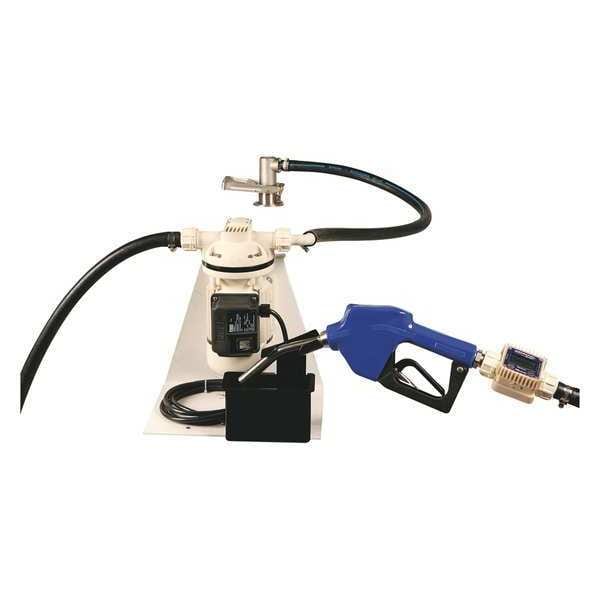

Item Electric Drum Pump
Bypass Valve Internal
Bearing Type Sealed Ball
Duty Cycle Intermittent
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Includes Drip Cup, Hanger Plate, Nozzle Holder
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Metered Yes
Standards ISO
Pressure Range 23 psi
Nozzle Material Stainless Steel
Nozzle Type Automatic
Motor Type 2 Pole
Agency Compliance ISO
Wetted Materials EPDM, Polypropylene, Stainless Steel
Motor Enclosure IP55
Suction Tube OD 1 in
Discharge Tube Outlet OD 1 in
Discharge Connection Type Hose Barb
Frequency (Hz) 60 Hz Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Full Load Amps 4.5 A
Max. Oil Flow 8 gpm
Diesel Exhaust Fluid Compatible Yes
Includes Discharge Hose Yes
Max. Head - Pumps 48 ft
Spout Connection Type Integral to Nozzle
For Container Type Drum, Tote
Runs Dry Yes
Includes Suction Tube Yes
Includes Bung Adapter No
Variable Speed No
Max. Head Pressure 23 psi
Pump Connection Type Hose Barb
Hose Tube Material EPDM
Max. Fluid Temp. 104 Degrees F
Discharge Tube Outlet ID 3/4 in Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Suction Tube ID 3/4 in
Nozzle Operation Automatic
Includes Spout Yes
Pump Connection OD 1 in
Housing Material - Pumps Polypropylene
Max. Flow Rate 8 gpm
Motor HP 1/10 hp
Includes Nozzle Yes
Noise Level 70 dB
Spout Material 316 Stainless Steel
Min. Fluid Temp. 17 Degrees F
Hose Cover Material Thermal Plastic
Power Source Corded Electric
Number of Phases 1
Food Grade No
Motor RPM 1,750 RPM
Suction Tube Material EPDM
Gear Lube NT
Rated Voltage 115 V AC
Max. Outlet Pressure 23 psi
Explosion Proof No
Grease NT
Meter Type Included Digital
Plug Type NEMA 5-15-P
Nozzle Fluid Compatibility DEF
Static Protection Not Groundable
Frequency 60 Hz
Motor Horsepower 1/10 hp
Maximum Fluid Temperature 104 Degrees F
Maximum Viscosity 10 cps
Hazardous Location Class Not Rated
Wetted Material EPDM/Polypropylene/Stainless Steel
Minimum Fluid Temperature 17 Degrees F
Full Load Current 4.5 A
Mount Type Foot
Adapter Connection Standard Buttress
Pump Connection ID 3/4 in
Maximum Head 48 ft
Motor Speed 1,750 RPM
Maximum Outlet Pressure 23 psi
Phase Single
Maximum Head Pressure 23 psi
Housing Finish Powder Coated
Maximum Flow Rate 8 gpm
Pump Technology Diaphragm
Meter Unit Of Measure Gallons, Liters
Maximum Oil Flow 8 gpm
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Power Source - TS Only Corded Electric
Power Source - old Corded Electric
