Voltage 115VAC
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
RPM 1730
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

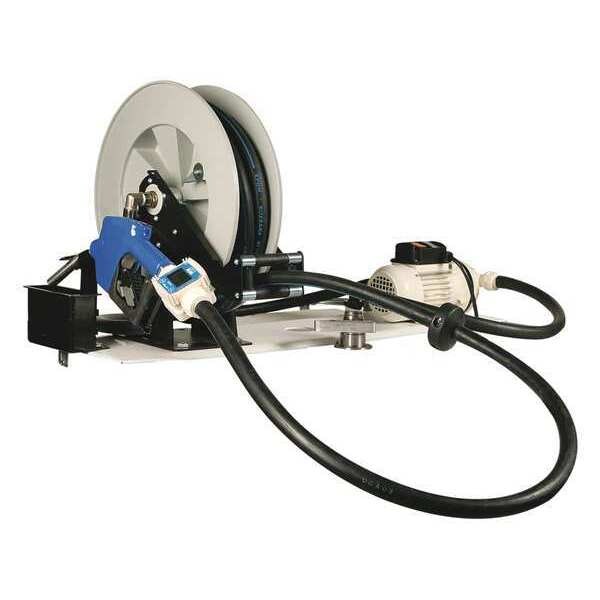

Item Electric Drum Pump
Pressure Range 23 psi
Bypass Valve Internal
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Bearing Type Sealed Ball
Duty Cycle Intermittent
Nozzle Material Stainless Steel
Nozzle Type Automatic
Standards ISO
Metered Yes
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Includes Drip Cup, Nozzle Holder, Spring Rewind Hose Reel, Tote Mounting Plate
Motor Enclosure IP55
Motor Type 2 Pole
Wetted Materials EPDM, Polypropylene, Stainless Steel
Agency Compliance ISO
Noise Level 70 dB
Pump Connection OD 1 in
Suction Tube ID 3/4 in
Includes Discharge Hose Yes
Hose Tube Material EPDM
Nozzle Operation Automatic
Full Load Amps 4.5 A
Suction Tube Material EPDM
Frequency (Hz) 60 Hz
Discharge Tube Outlet OD 1 in
Max. Head Pressure 23 psi
Min. Fluid Temp. 17 Degrees F
Pump Connection Type Hose Barb
Motor RPM 1,750 RPM
Max. Head - Pumps 48 ft
Hose Cover Material Thermal Plastic
Power Source Corded Electric
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
For Container Type Drum, Tote
Motor HP 1/10 hp Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Suction Tube OD 1 in
Includes Bung Adapter No
Max. Fluid Temp. 104 Degrees F
Food Grade No
Includes Spout Yes
Spout Connection Type Integral to Nozzle
Housing Material - Pumps Polypropylene
Number of Phases 1
Includes Nozzle Yes
Max. Flow Rate 8 gpm
Spout Material 316 Stainless Steel
Discharge Tube Outlet ID 3/4 in
Variable Speed No
Includes Suction Tube Yes
Diesel Exhaust Fluid Compatible Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Discharge Connection Type Hose Barb
Runs Dry Yes
Max. Oil Flow 8 gpm
Explosion Proof No
Rated Voltage 115 V AC
Max. Outlet Pressure 23 psi
Gear Lube NT
Grease NT
Minimum Fluid Temperature 17 Degrees F
Meter Unit Of Measure Gallons, Liters
Maximum Head 48 ft
Maximum Head Pressure 23 psi
Meter Type Included Digital
Full Load Current 4.5 A
Maximum Flow Rate 8 gpm
Maximum Oil Flow 8 gpm
Adapter Connection Standard Buttress
Mount Type Foot
Maximum Outlet Pressure 23 psi
Frequency 60 Hz
Maximum Fluid Temperature 104 Degrees F
Static Protection Not Groundable
Maximum Viscosity 10 cps
Hazardous Location Class Not Rated
Plug Type NEMA 5-15-P
Motor Speed 1,750 RPM
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Horsepower 1/10 hp
Pump Connection ID 3/4 in
Pump Technology Diaphragm
Nozzle Fluid Compatibility DEF
Housing Finish Powder Coated
Phase Single
Wetted Material EPDM/Polypropylene/Stainless Steel
Power Source - TS Only Corded Electric
