Voltage 115VAC
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

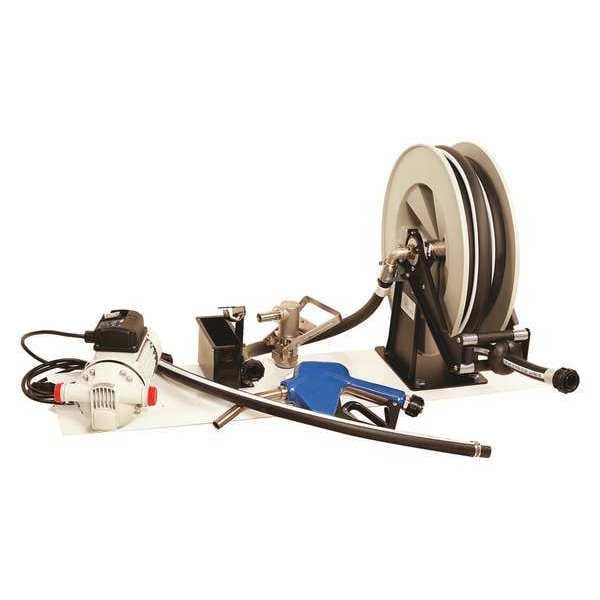

Item Electric Drum Pump
Wetted Materials EPDM, Polypropylene, Stainless Steel
Max. Head 48 ft.
Max. Liquid Temp. 104 Degrees F
Bearing Type Sealed Ball
Hz 60
Max. Specific Gravity 1.09
Duty Intermittent
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Duty Cycle Intermittent
Max. GPM for Water 8
Nozzle Type Automatic
Adapter Type RSV
Gasket Material EPDM
Shaft Material Stainless Steel
Max. Pressure 24 psi
Nozzle Material Stainless Steel
pH Range 5.0 to 10
Agency Compliance ISO
Bypass Valve Internal
Phase Single
Motor Type 2 Pole
Inlet 3/4"
Adapter Material 316 Stainless Steel
Metered Yes
Pump Body Material Polypropylene
Motor Enclosure IP55
Hose Material Peroxide Cured EPDM
Pressure Range 23 psi
Amps 3.5
Suction Lift 6 ft.
Includes Coupler, Drip Cup, Hose, Nozzle Hanger, Reel, Tote Mounting Plate
Max. Temp. 104 Degrees F
Features Dispenses 8 gpm
Includes Suction Tube Yes
Motor HP 1/10 hp Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Variable Speed No
Hose Cover Material Thermal Plastic
Power Source Corded Electric
Nozzle Operation Automatic
Motor RPM 1,750 RPM
Frequency (Hz) 60 Hz
Max. Oil Flow 8 gpm
For Container Type Drum, Tote
Min. Fluid Temp. 17 Degrees F
Number of Phases 1
Max. Fluid Temp. 104 Degrees F
Diesel Exhaust Fluid Compatible Yes
Max. Head - Pumps 48 ft
Pump Connection OD 1 in Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Noise Level 70 dB
Discharge Tube Outlet ID 3/4 in
Full Load Amps 4.5 A
Includes Bung Adapter No
Discharge Connection Type Hose Barb
Suction Tube ID 3/4 in
Spout Material 316 Stainless Steel
Housing Material - Pumps Polypropylene
Food Grade No
Max. Head Pressure 23 psi
Pump Connection Type Hose Barb
Suction Tube Material EPDM
Discharge Tube Outlet OD 1 in
Includes Discharge Hose Yes
Suction Tube OD 1 in
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Hose Tube Material EPDM
Max. Flow Rate 8 gpm
Spout Connection Type Integral to Nozzle
Includes Nozzle Yes
Runs Dry Yes
Includes Spout Yes
Rated Voltage 115 V AC
Grease NT
Gear Lube NT
Explosion Proof No
Max. Outlet Pressure 23 psi
Maximum Viscosity 10 cps
Hazardous Location Class Not Rated
Minimum Fluid Temperature 17 Degrees F
Maximum Fluid Temperature 104 Degrees F
Housing Finish Powder Coated
Motor Horsepower 1/10 hp
Frequency 60 Hz
Pump Connection ID 3/4 in
Meter Type Included No Meter Included
Maximum Head 48 ft
Static Protection Not Groundable
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Head Pressure 23 psi
Motor Speed 1,750 RPM
Plug Type NEMA 5-15-P
Maximum Outlet Pressure 23 psi
Mount Type Foot
Standards ISO
Adapter Connection Standard Buttress
Maximum Flow Rate 8 gpm
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Enclosure Design Totally Enclosed Fan Cooled
Maximum Oil Flow 8 gpm
Nozzle Fluid Compatibility DEF
Pump Technology Diaphragm
Full Load Current 4.5 A
Power Source - TS Only Corded Electric
