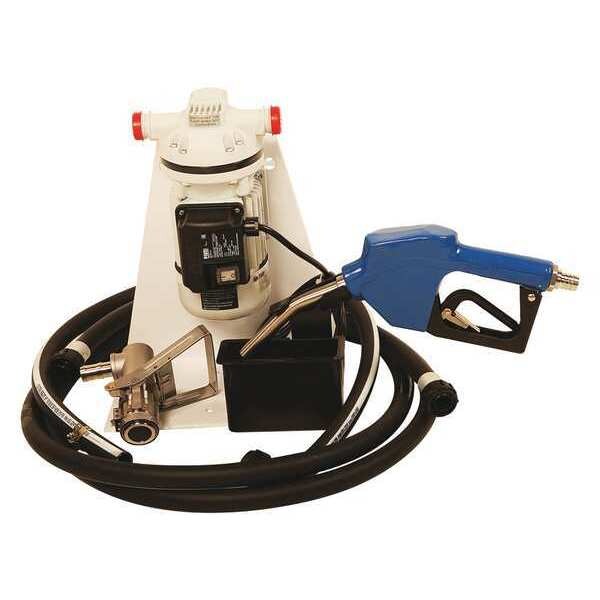

  9. Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet
Liquidynamics Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet DS15H12XASXXRSV - main

Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

  • Mfr # DS15H12XASXXRSV

  • Zoro # G4573305

product price: $1,504.99
/ea
Free Shipping & Returns

Key Features

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS15H12XASXXRSV
Zoro #
G4573305
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Hose Length
12 ft
Hose Dia.
3/4"
Overall Height
16"
Outlet Size
3/4" Barb
Cord Length
54 in
Overall Width
12"
Manufacturers Warranty Length
11 yr. Pump, 1 yr. Dispensing System
Overall Length
48 in
Suction Tube Length
48 in
Height Above Container
4 in
Hose Outside Dia.
1 in
Spout Length
6 in
Hose Inside Dia.
3/4 in
For Container Size
55 gal, 275 gal, 330 gal
Spout Discharge Size
3/4 in

Details

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
Seal Material
EPDM
Pump Design
Nutating Diaphragm
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
10 cps
Item
Electric Operated Drum Pump
Features
Dispenses 8 gpm
Hose Material
Peroxide Cured EPDM
Includes
Coupler, Drip Cup, Hose, Nozzle, Nozzle Hanger, Side Mount Hanger
Suction Lift
6 ft.
Max. Specific Gravity
1.09
Bearing Type
Sealed Ball
Max. Head
48 ft.
Motor Type
2 Pole
Metered
Yes
Max. GPM for Water
8
Max. Temp.
104 Degrees F
Max. Liquid Temp.
104 Degrees F
Pump Body Material
Polypropylene
pH Range
5.0 to 10
Amps
3.5
Bypass Valve
Internal
Gasket Material
EPDM
Adapter Material
316 Stainless Steel
Adapter Type
RSV
Pressure Range
23 psi
Motor Enclosure
IP55
Hz
60
Nozzle Material
Stainless Steel
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Agency Compliance
ISO
Duty
Intermittent
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Duty Cycle
Intermittent
Phase
1
Max. Pressure
32 psi
Inlet
3/4"
Shaft Material
Stainless Steel
Nozzle Type
Automatic
Noise Level
70 db
Housing Material - Pumps
Polypropylene
Diesel Exhaust Fluid Compatible
Yes
Includes Nozzle
Yes
Number of Phases
1
Includes Discharge Hose
Yes
Full Load Amps
4.5 A
For Container Type
Drum, Tote
Suction Tube Material
EPDM
Max. Head - Pumps
48 ft
Suction Tube ID
3/4 in
Hose Tube Material
EPDM
Hose Cover Material
Thermal Plastic
Min. Fluid Temp.
17 Degrees F
Power Source
Electric
Includes Bung Adapter
No
Discharge Connection Type
Hose Barb
Pump Connection Type
Hose Barb
Food Grade
No
Nozzle Operation
Automatic
Discharge Tube Outlet OD
1 in
Discharge Tube Outlet ID
3/4 in
Motor RPM
1,750 RPM
Max. Oil Flow
8 gpm
Pump Connection OD
1 in
Runs Dry
Yes
Motor HP
1/10 hp
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Frequency (Hz)
60 Hz
Suction Tube OD
1 in
Max. Fluid Temp.
104 Degrees F
Max. Head Pressure
23 psi
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Flow Rate
8 gpm
Spout Connection Type
Integral to Nozzle
Variable Speed
No
Includes Spout
Yes
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Includes Suction Tube
Yes
Spout Material
316 Stainless Steel
Rated Voltage
115V AC
Grease
NT
Explosion Proof
No
Gear Lube
NT
Max. Outlet Pressure
23 psi

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 115 V AC, Plug Type NEMA 5-15-P, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 48 in, Cord Length 54 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
