Shop LITHONIA LIGHTING

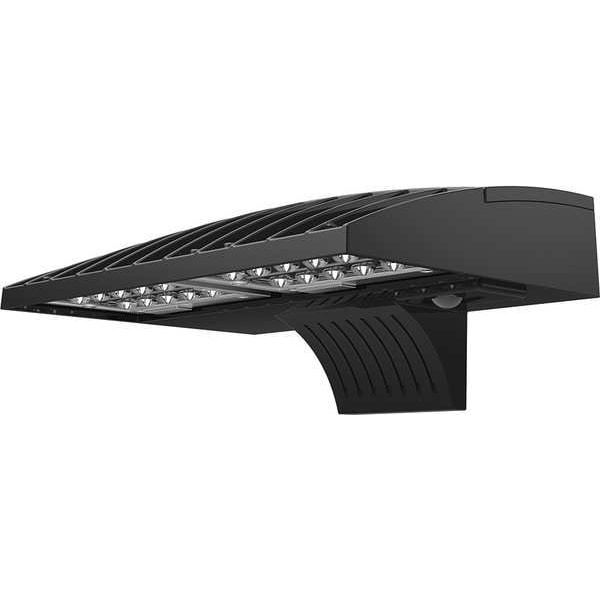

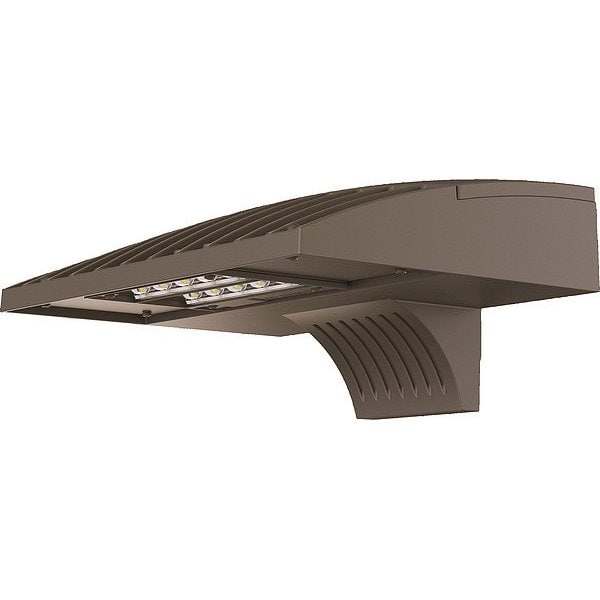

LED Area Light, 51W, 120-277V, 4000L

  • Mfr # DSXW1 P5 40K 70CRI T2M MVOLT SRM DDBXD

  • Zoro # G2819437

product price:  $546.99
/ea
Free Shipping & Returns

Key Features

Lumens
5,309 lm
Voltage
120 to 277V AC
Max. Fixture Wattage
46.0
Watts
51
Fixture Voltage
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DSXW1 P5 40K 70CRI T2M MVOLT SRM DDBXD
Zoro #
G2819437
UPC #
00753573490180
Country of Origin
United States

Dimensions

Fixture Height
6 13/32 in
Recommended Mounting Height
8 to 15 ft
Fixture Length
13 3/4 in
Fixture Width
10 in
Width
10 in
Length
13 3/4 in
Height
6 3/8 in
Overall Height
6 3/8 in
Hub Size
3/4 in NPT
Mounting Height - Minimum
8 ft
Manufacturers Warranty Length
5 yr
Mounting Height - Maximum
15 ft
Overall Width
10 in
Overall Length
13 3/4 in
Wire Rope Length
13 3/4 in

Details

Lumens
5,309 lm
Voltage
120 to 277V AC
Max. Fixture Wattage
46.0
Watts
51
Fixture Voltage
120 to 277
Item
Anti-Glare Wall Pack
CRI
70
Sensor Type - Fixtures
No Sensor Included
Operating Temp. Range
-40 Degrees to 50 Degrees C
Type - Wall Pack Fixtures
General Purpose
Lighting Certification
DesignLights Consortium (DLC)
Fixture Housing Material
Die-Cast Aluminum
Housing Material
Aluminum
Lamp Watts - Fixtures
46.0
Fixture Lens Material
Acrylic
IP Rating
IP66
Includes
Surface Mounting Bracket
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Fixture Rated Life
100,000 hr
Color Temperature
4000K
Housing Finish
Dark Bronze
LED Replacement For
150W HPS/MH
Series
DSXW1 LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Standards
CSA Certified to US and Canadian Standards
Light Distribution
Type II Medium
Lumens Per Watt
115.0
Description/Special Features
700mA Drive Current, Two Light Engine
Color Rendering Index
70
Fixture Housing Color
Bronze
Warranty
5 yr
Color Temp.
4000K
Lens Material
Acrylic
Light Distribution Shape
Type II
Rated Life
100,000 hr
Fixture Sensor Type
No Sensor Included
Fixture Wattage
46 W
Temp. Range
-40 Degrees to 50 Degrees C
Light Technology
LED
Lumens per Watt
115 lm/W
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
122 Degrees F
Special Features
700mA Drive Current, Two Light Engine
Housing Color
Bronze
Mount Type
Surface
Number of Hubs
1
Metal Halide Wattage Equivalency
150 W
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
122 Degrees F
Sensor Type
Not Sensor Compatible
Lumen Selectable
Not Selectable
Incandescent Wattage Equivalency
200 W
Light Distribution Type - IESNA
Type II
Number of Knockouts
0
Light Output
5,309 lm
High Pressure Sodium Wattage Equivalency
150 W
Color Selectable
Not Selectable

Description

Anti-Glare Wall Pack, Lumens 5,309 lm, Fixture Wattage 46 W, Voltage 120 to 277V AC, Light Distribution Shape Type II, LED Replacement For 150W HPS/MH, Fixture Sensor Type No Sensor Included, Light Technology LED, Color Temperature 4000K, Color Rendering Index 70, Height 6 3/8 in, Width 10 in, Rated Life 100,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Die-Cast Aluminum, Fixture Lens Material Acrylic, IP Rating IP66, Lumens per Watt 115 lm/W, Max. Operating Temp. 122 Degrees F
