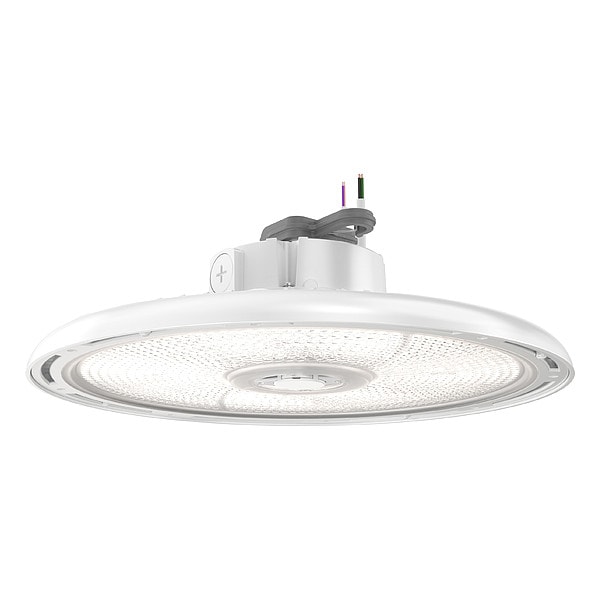

Lithonia Lighting LED High Bay, White, REBL, 17 1/8 in W REBL ALO28 XVOLT SWW9 80CRI DWH M2 - main

LED High Bay, White, REBL, 17 1/8 in W

  • Mfr # REBL ALO28 XVOLT SWW9 80CRI DWH M2

  • Zoro # G214841571

product price:  $680.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
40 to 55 ft
Lumens
55,000 lm
Light Distribution
General
Color Temperature
4000K, 5000K
Standards
C-UL listed to Canadian Safety Standards, IP65, NEMA 4X, NSF Splash Zone 2 Rated, UL Listed to US Safety Standards, Wet Location Listed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
REBL ALO28 XVOLT SWW9 80CRI DWH M2
Zoro #
G214841571
UPC #
197590119578
Country of Origin
Viet Nam

Dimensions

Suggested Fixture Mounting Height
40 to 55 ft
Suggested Fixture Mounting Height Range
40 to 60 ft.
Suggested Mounting Height - Maximum
55 ft
Nominal Length
17 in
Overall Height
12 13/16 in
Suggested Mounting Height - Minimum
40 ft
Overall Width
17 1/8 in

Details

Lumens
55,000 lm
Light Distribution
General
Color Temperature
4000K, 5000K
Standards
C-UL listed to Canadian Safety Standards, IP65, NEMA 4X, NSF Splash Zone 2 Rated, UL Listed to US Safety Standards, Wet Location Listed
Max. Fixture Wattage
330 W
Voltage
277 to 480V AC
Item
LED High Bay
Emergency Battery Backup
No
Housing Color
White
Series
REBL
Bay Light Type
High Bay
Power Source
Hardwired
For Bulb Shape
Round
Lamp Type
Integrated LED
Bulbs Included
Integrated
Ambient Temp. Range
-40 to 131 Degrees F
Min. Ambient Temp.
-40 Degrees F
Lumens per Watt
186 lm/W
CA Title 24 Compliant
Yes
Max. Ambient Temp.
131 Degrees F
Lumen Selectable
Selectable
Mounting Style
Ceiling, Suspended
IP Rating
IP66
Light Output
35,000 lm, 45,000 lm, 55,000 lm
LED Replacement For
1000W MH
Maximum Fixture Wattage
330 W
Lighting Technology
LED
Product Type
Round High Bay
Lens Material
Polycarbonate
Number of Bulbs
0
Color Selectable
Selectable
Dimmable
Yes
Ambient Temperature - Minimum
-40 Degrees C
For Bulb Type
Integrated LED
Ambient Temperature - Maximum
55 Degrees C

Description

LED High Bay, White, REBL, 17 1/8 in W
