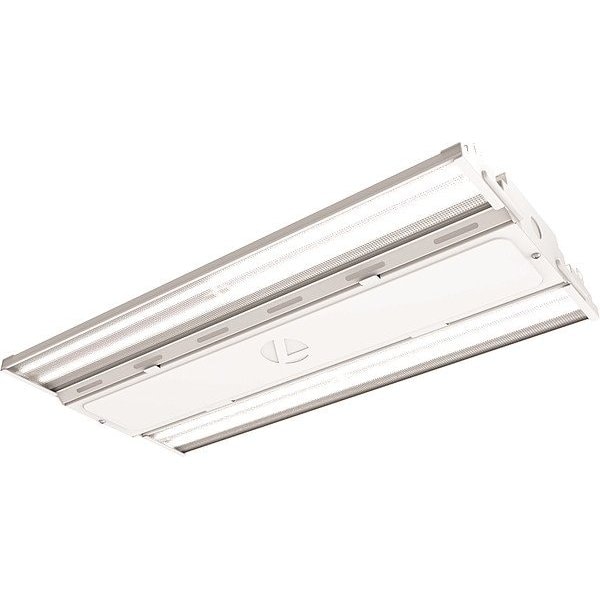

LEDHghBay, White, CPHB, 2213/16inL, 111/2inW

  • Mfr # CPHB24000LMSEFGCLMDHVOLTGZ1040K80CRIDWH

  • Zoro # G610877815

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Suggested Fixture Mounting Height
10-30 ft
Lumens
24,000 lm
Light Distribution
General
Color Temperature
4000K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CPHB24000LMSEFGCLMDHVOLTGZ1040K80CRIDWH
Zoro #
G610877815
UPC #
194995192311
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
10-30 ft
Overall Height
2 5/16 in
Overall Length
22 13/16 in
Overall Width
11 1/2 in
Nominal Length
15 in
Suggested Mounting Height - Maximum
30 ft
Suggested Mounting Height - Minimum
10 ft

Details

Lighting Technology
LED
Lumens
24,000 lm
Light Distribution
General
Color Temperature
4000K
Standards
BAA, CSA
Max. Fixture Wattage
174 W
LED Replacement For
(6) lamp T5HO, 400W MH
Rated Life
100,000 hr
Emergency Battery Backup
No
Lighting Certification
DesignLights Consortium (DLC) Premium
For Bulb Type
Integrated LED
Voltage
347 to 480V AC
Ambient Temp. Range
-40 Degrees to 113 Degrees F
Lamp Type
Integrated LED
Housing Finish
Gloss
Series
CPHB
Lens Material
Acrylic
Housing Material
Aluminum
Dimmable
Yes
Max. Ambient Temp.
131 Degrees F
Bay Light Type
High Bay
Min. Ambient Temp.
-40 Degrees F
Housing Color
White
Lamp Watts - Fixtures
174 W
Lumens per Watt
143 lm/W
Includes
Hanger Chain, 36 in, V-Hook
Item
LED High Bay
Number of Bulbs
0
Power Source
Hardwired
Bulbs Included
Integrated
Linkable
No
Light Output
24,000 lm
Product Type
LED High Bay Fixture
Maximum Fixture Wattage
174 W
Ambient Temperature - Minimum
-40 Degrees F
Color Selectable
Not Selectable
Mounting Style
Ceiling, Suspended
Lumen Selectable
Not Selectable
Ambient Temperature - Maximum
131 Degrees F

Description

LED High Bay
