Shop LITHONIA LIGHTING

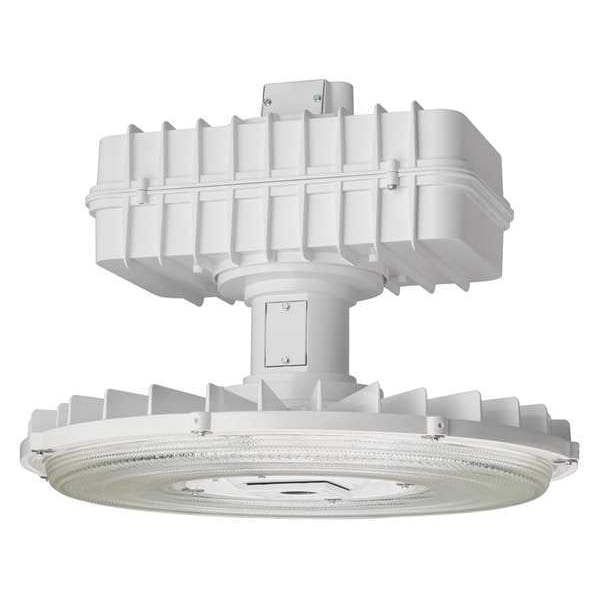

LEDHighBay, White, JHBL, 223/8inL, 223/8inW

  • Mfr # JHBL18000LMGLNDMVOLTGZ1050K70CRIDWHXD

  • Zoro # G2819726

product price:  $774.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
Up to 60 ft
Lighting Technology
LED
Light Distribution
Narrow
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JHBL18000LMGLNDMVOLTGZ1050K70CRIDWHXD
Zoro #
G2819726
UPC #
193048072488
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
Up to 60 ft
Fixture Length
22 3/8 in
Fixture Width
22 3/8 in
Space to Mtg. Height Ratio
0.9
Fixture Height
16 5/8 in
Width
22-3/8
Length
22-3/8
Height
16-5/8
Overall Width
22 3/8 in
Overall Height
16 5/8 in
Nominal Size - Fixtures
2 ft x 2 ft
Overall Length
22 3/8 in
Suggested Fixture Mounting Height Range
40 to 60 ft.
Nominal Length
22 3/8 in
Suggested Mounting Height - Maximum
40 ft
Suggested Mounting Height - Minimum
20 ft
Wire Rope Length
22 3/8 in

Details

Lighting Technology
LED
Lumens
19,179 lm
Light Distribution
Narrow
Fixture Voltage
120 to 277
Color Temperature
5000K
Lamp Type - Fixtures
Integrated LED
Standards
CSA Certified to US and Canadian Safety Standards
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Max. Fixture Wattage
131 W
LED Replacement For
400W HPS/MH
Fixture Housing Color
White
CRI
70
Dimmable
Yes
Fixture Lens Material
Glass
Occupancy Sensor
No
Fixture Series
JHBL
Fixture Mounting Type
Hook, Pendant
Fixture Temp. Range
-40 Degrees to 149 Degrees F
Item
LED High Bay
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
IP Rating
IP65
Lumens Per Watt
146.0
Lighting Certification
DesignLights Consortium (DLC)
Fixture Rated Life
100,000 hr
Number of Light Bars
4
Includes
3/4 NPS Threaded Hub
Fixture Housing Material
Aluminum
Emergency Back Up Battery
No
Color Rendering Index
70.0
Lamp Watts - Fixtures
131 W
Fixture Warranty
5 yr
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Color Temp.
5000K
Bulb Technology
LED
Watts
153
Voltage
120 to 277V AC
Warranty
5 yr.
Rated Life
100,000 hr
Lumens per Watt
146 lm/W
Housing Material
Die-Cast Aluminum
For Bulb Shape
Integrated LED
Lens Material
Glass
Number of Bulbs
0
Lamp Type
Integrated LED
For Bulb Type
Integrated LED
Max. Ambient Temp.
149 Degrees F
Min. Ambient Temp.
-40 Degrees F
Series
JHBL
CA Title 24 Compliant
No
Emergency Battery Backup
No
For Bulb Base Type
Integrated LED
Housing Color
White
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Bay Light Type
High Bay
Ingress Protection Rating
65
Reflector Type
Enclosed
Bulbs Included
Integrated
Mounting Style
Ceiling, Suspended
Color Selectable
Not Selectable
Product Type
LED High Bay
Lumen Selectable
Not Selectable
Lens Type
Glass
Light Output
19,179 lm
Maximum Fixture Wattage
131 W
Ambient Temperature - Maximum
65 Degrees C
Ambient Temperature - Minimum
-40 Degrees C

Description

LED High Bay, LED Replacement For 400W HPS/MH, Fixture Voltage 120 to 277, 131 Watts, 19,179 Lumens, Color Temp. 5000K, Fixture Rated Life 100,000 hr., Standards CSA Cerified to US and Canadian Safety Standards, Light Distribution Narrow, Fixture Length 22-3/8 In., Fixture Width 22-3/8 In., Fixture Height 16-5/8 In., Dimmable Yes, Fixture Series JHBL, Occupancy Sensor No, Fixture Lens Material Glass, Number of Light Bars 4, Space to Mtg. Height Ratio 0.9, CRI 70
