Shop LITTLE GIANT PUMP

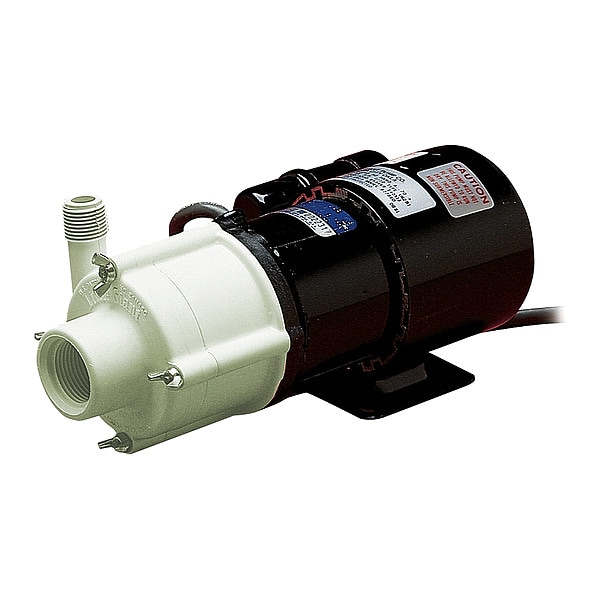

Magnetic Drive Pump, 1/10 hp, 230VAC

  • Mfr # 582514

  • Zoro # G908168458

product price:  $652.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Glass-Filled Polypropylene
Manufacturers Warranty Length
1 yr
Motor Type
Permanent Split Capacitor
Phase
Single
Cord Length
6 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
582514
Zoro #
G908168458
UPC #
0010121825147
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Cord Length
6 ft
Intake Pipe Size
1 in
Overall Height
4.9 in
Discharge Pipe Size
1/2 in
Overall Length
10.6 in
Overall Width
5.5 in
Motor Frame Size
3.3
Inlet Diameter
1 in
Discharge Diameter
1/2 in
Impeller Diameter
1 83/100 in
Wire Rope Length
10.6 in

Details

Item
Magnetic Drive Pump
Housing Material
Glass-Filled Polypropylene
Motor Type
Permanent Split Capacitor
Phase
Single
Impeller Material
Polypropylene
Motor Enclosure
Totally Enclosed Fan Cooled
Discharge Pipe Type
MNPT
Full Load Current
0.7 A
Operating Pressure (Maximum)
10.5 psi
Viscosity (Maximum)
100 SUS
Flow Rate @ 9 ft of Head (Maximum)
11.8 gpm
Flow Rate @ 15 ft of Head (Maximum)
39 lpm
Flow Rate @ 18 ft of Head (Maximum)
30 lpm
Intake Pipe Type
FNPT
Horsepower (Maximum)
1/10 hp
Motor Mounting Type
Horizontal
Flow Rate @ 24 ft of Head (Maximum)
0.1 lpm
Priming
Manual
Motor Speed (Maximum)
3,000 RPM
Flow Rate @ 6 ft of Head (Maximum)
12.8 gpm
Flow Rate @ 3 ft of Head (Maximum)
13.5 gpm
Electrical Connection Type
Hardwired
Frequency
50/60 Hz
Mounting Orientation
Horizontal
Nameplate Voltage
230V AC
Feet of Head (Maximum)
24.3 ft
Media Temperature (Maximum)
150 Degrees F
Specific Gravity (Maximum)
1.1
Pump Drive Configuration
Close-Coupled
Case Pressure - Maximum
10.5 psi
Ambient Temperature - Minimum
32 Degrees F
Pumping Application
Chemical Transfer
Best Efficiency Head
15 ft
Gasket Material
Buna-N
Motor Design
Permanent Split Capacitor
Number of Stages
1
Shut Off Pressure - Maximum
10.5 psi
Chemical Compatibility
Media Temperature - Maximum
150 Degrees F
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Not Rated
Ambient Temperature - Maximum
77 Degrees F
Flow Rate (Maximum)
14 gpm
Pump Design
End Suction
Media Temperature - Minimum
32 Degrees F
Best Efficiency Flow
9 gpm
Shaft Seal Type
Sealless
Pump Mounting Style
Base-Mounted

Description

Magnetic Drive Pump

Restrictions

Hazardous material
