Shop LITTLE GIANT PUMP

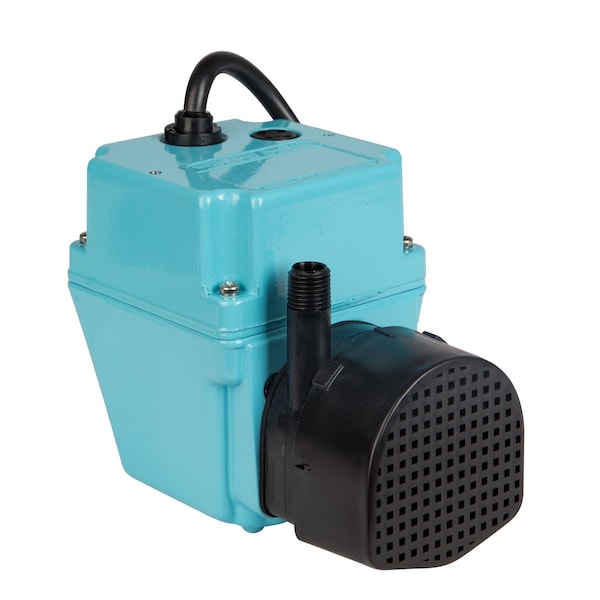

Centrifugal Pump, 115V AC, 5-1/2" x 3-1/2" x 4-3/4", 1/40 hp

  • Mfr # 502103

  • Zoro # G1548897

product price:
$
135.90
/ea
Free Shipping & Returns

Key Features

HP
1/40 hp
Voltage
115V
Full Load Amps
1.7 A
Cord Length
6 ft
Impeller Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
502103
Zoro #
G1548897
UPC #
010121029200
Country of Origin
Mexico
Item
Centrifugal Pump
HP
1/40 hp
Voltage
115V
Full Load Amps
1.7 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
11.8 ft
Seal Material
Nitrile
Inlet
Hooded
GPH of Water @ 5 Ft. of Head
205
Inlet Type
Hooded
Features
Submersible
Agency Compliance
UL
Overload Protection
yes
GPH of Water @ 10 Ft. of Head
70
Housing Material
Nylon
Outlet
1/4 in (M)NPT
GPH of Water @ 1 Ft. of Head
300
Amps
1.7 A
Standards
cCSAus Listed
Maximum Flow Rate
300 gph
Compatible with Media Type
Machine Oil, Water
Minimum Flow Rate
0 gph
Pumping Application
Coolant Recirculating, Liquid Transfer
Flow Rate @ 10 ft of Head (Maximum)
70 gph
Thermal Overload Protection
Yes
Pump Housing Material
Aluminum
Maximum Feet of Head
12 ft
Series
2E-N
Motor Sealing
Oil-Filled
Feet of Head (Minimum)
1 ft
Duty Cycle
Continuous
Flow Rate @ 1 ft of Head (Maximum)
300 gph
Maximum Media Temperature
120 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
205 gph
Horsepower
1/40 hp
Discharge Type
NPT
Frequency
60 Hz
Intake Type
Screened
Nameplate Voltage
115V AC
Seal Type
Mechanical
Pump Design
Submersible
Inlet Standard
Screened
Media Temperature - Maximum
120 Degrees F
Drive Coupling Type
No Coupling
Flow Rate (Maximum)
300 gph
Full Load Current
1.7A
Feet of Head (Maximum)
11.8 ft
Shaft Seal Type
Mechanical
Suction Lift (Maximum)
0 ft
Ambient Temperature - Maximum
120 Degrees F
Number of Stages
1
Media Temperature - Minimum
30 Degrees F
Phase
Single
Ambient Temperature - Minimum
30 Degrees F
Flow Rate (Minimum)
0 gph
Chemical Compatibility
Machine Oil, Water
Case Pressure - Maximum
5.12 psi
Shaft Seal Material
Buna-N

Description

Centrifugal Pump, Pump Housing Material Cast Aluminum, Horsepower 1/40 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 300 gph, Flow Rate @ 5 ft of Head (Maximum) 205 gph, Flow Rate @ 10 ft of Head (Maximum) 70 gph, Maximum Feet of Head 12 ft, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1/4 in, Intake Type Screened, Discharge Type NPT, Cord Length 6 ft, Motor Sealing Oil-Filled, Amps 1.7 A, Compatible with Media Type Machine Oil, Water
