Shop LITTLE GIANT PUMP

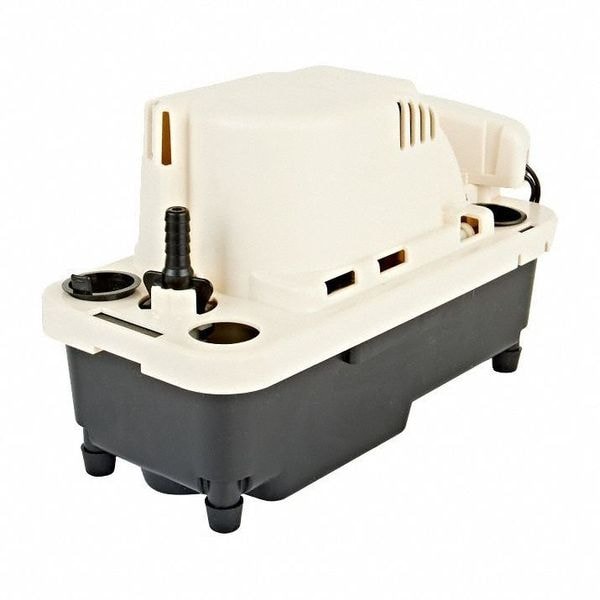

Condensate Removal Pump, 2/7 gal, 1/30 hp

  • Mfr # 554642

  • Zoro # G609232014

product price:  $165.00
/ea
Free Shipping & Returns

Key Features

Standards
cCSAus
Float Material
Plastic
Amps
1.5 A
Application
Condensate Removal
Includes
Anti-Sweat Sleeve, External Test/Run Lever
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
554642
Zoro #
G609232014
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
6 ft
Compatible Discharge Pipe Size
3/8 in
Manufacturer Warranty Length
3 yr
Overall Length
10.27 in
Overall Height
6.84 in
Overall Width
5.08 in
Compatible Intake Pipe Size
1 in
For Inlet Pipe Diameter
1 1/8 in
For Discharge Pipe Diameter
3/8 in
Wire Rope Length
10.27 in

Details

Item
Condensate Removal Pump
Standards
cCSAus
Float Material
Plastic
Amps
1.5 A
Application
Condensate Removal
Includes
Anti-Sweat Sleeve, External Test/Run Lever
Tank Material
Polypropylene
Pump Type
Standard
Intake Connection Style
Barbed
Series
VCMA-20 Pro
Horsepower
1/16 hp
Maximum Operating Pressure
9.1 psi
Maximum Flow Rate @ 1 Feet of Head
1.4 gpm
Pump Housing Material
ABS
Series Family
VCMA
Maximum Media Temperature
140 Degrees F
Frequency
60 Hz
Shut Off Level
1.2 in
Discharge Connection Style
Barbed
Phase
Single
Tank Capacity
5/8 gal
Minimum Media Temperature
32 Degrees F
Number of Intakes
3
For Use With Potable Systems
No
Maximum Ambient Temperature
140 Degrees F
Plenum Rated
No
Electrical Connection Type
Plug-In
Maximum Feet of Head
21 ft
Turn On Level
1.6 in
Maximum Flow Rate @ 5 Feet of Head
1.25 gpm
Priming
Self-Priming
Minimum Ambient Temperature
32 Degrees F
Maximum Flow Rate @ 10 Feet of Head
1 gpm
Pump Activation Type
Float Switch
Maximum Flow Rate @ 15 Feet of Head
0.7 gpm
Maximum Flow Rate @ 20 Feet of Head
0.17 gpm
Nameplate Voltage
115V AC
Wetted Material
ABS, Poly
Compatible Media Type
Condensate
Feet of Head - Maximum
21 ft
Inlet Standard
Open
Discharge Standard
Barbed
Pump Technology
Centrifugal
Pump Casing Material
Plastic
Media Temperature - Maximum
140 Degrees F
Ambient Temperature - Maximum
140 Degrees F
Installation
Floor Standing
Number of Inlets
3
Power Source
Corded Electric
Ambient Temperature - Minimum
32 Degrees F
Media Temperature - Minimum
33 Degrees F
For Media Type
Clear Water
Includes Safety Switch
Safety Switch Included
Includes Tubing
No Tubing Included
Full Load Current
1.5 A
For HVAC System Duct
Ducted
Operating Pressure - Maximum
9.1 psi
Product Type
Condensate Removal Pump
Tank Opacity
Solid
Power Source - TS Only
Corded Electric

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Includes External Test/Run Lever, Intake Connection Style Barbed, Maximum Feet of Head 21 ft, Maximum Flow Rate @ 10 Feet of Head 1 gpm, Maximum Flow Rate @ 15 Feet of Head 0.7 gpm, Maximum Flow Rate @ 1 Foot of Head 1.4 gpm, Maximum Flow Rate @ 20 Feet of Head 0.17 gpm, Maximum Media Temperature 140 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Standard, Series VCMA-20 Pro, Series Family VCMA
