  9. GrinderPumpSystem, 20ft, 1hp, 115VAC

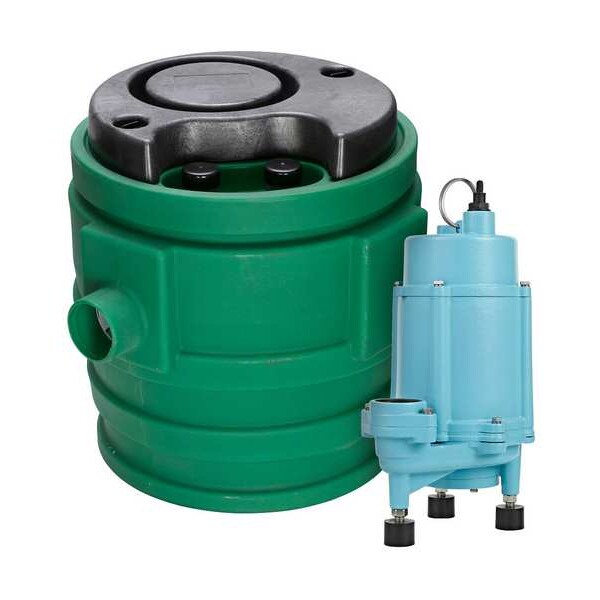

Little Giant Pump GrinderPumpSystem, 20ft, 1hp, 115VAC 509815 - main

GrinderPumpSystem, 20ft, 1hp, 115VAC

  • Mfr # 509815

  • Zoro # G004420153

product price: $1,963.99
/ea
Free Shipping & Returns

Key Features

Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Phase - Pumps
Single
Flow Rate @ 20 Ft. of Head
43.9 gpm
Flow Rate @ 10 Ft. of Head
49.3 gpm
HP
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
509815
Zoro #
G004420153
UPC #
010121999398
Country of Origin
Multiple

Dimensions

Manufacturers Warranty Length
3 yr
Max. Diameter Solids
2 in
Cord Length
20 ft
Basin Dia.
24 in
Inlet Dia.
4 in
Basin Height
24 in
Vent Size
2 in
Inlet Diameter
4 in
Discharge Diameter
1 1/4 in
Basin Diameter
24 in
Solids Diameter - Maximum
2 in

Details

Item
Grinder Pump System
Shaft Seal Material - Pumps
Nitrile, Silicon Carbide
Phase - Pumps
Single
Flow Rate @ 20 Ft. of Head
43.9 gpm
Flow Rate @ 10 Ft. of Head
49.3 gpm
HP
1 hp
Switch Actuation
Tether Float
On Point
9 in
RPM
3,450 RPM
Hz
60 Hz
Duty Cycle
Continuous
Impeller Material
Cast Iron
Switch Electrical Connection
Piggyback
Off Point
2 in
Max. Liquid Temp.
140 Degrees F
Amps
12.5 A
Max. Head
51 ft
Agency Compliance
cULus
Rated Voltage
115V AC
Inlet
4 in
Pump Body Material
Cast Iron
Alarm Included
No
Flow Rate @ 30 Ft. of Head
37.5 gpm
Basin Material
HDPE
Number of Pumps
1
Frequency
60 Hz
Standards
cULus
Power Source
Corded Electric
Discharge Standard
NPT
Phase
Single
For Media Type
Sewage Water
Compatible Drop-In Replacement Brand
Little Giant
Basin Capacity
47 gal
Rotation Speed - Maximum
3,450 RPM
Horsepower
1 hp
Current
12.5 A
Feet of Head - Maximum
51 ft
Discharge Location
Top
Flow Rate @ 10 ft of Head
49 gpm
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Material
Nitrile Rubber/Silicon Carbide
Includes Alarm
No Alarm Included
Discharge Gender
Female
Compatible Drop-In Replacement Series
Pit+Plus Jr.

Description

GrinderPumpSystem,20ft,1hp,115VAC
