Shop LITTLE GIANT PUMP

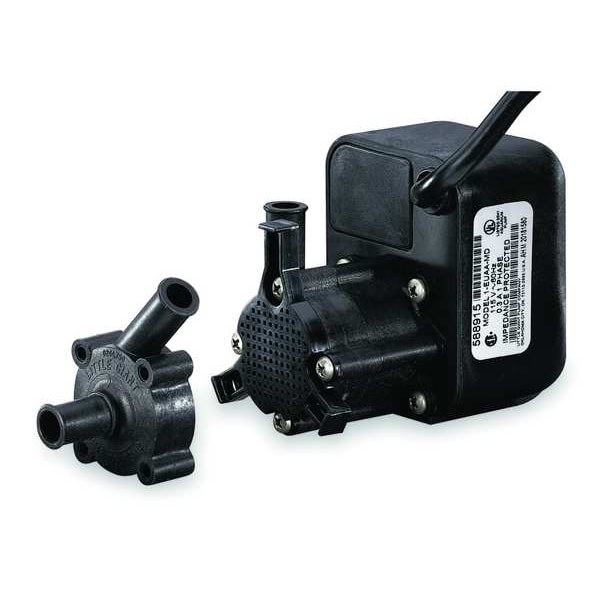

1/200 HP PP Submersible Magnetic Drive Pump 115V 1/2" OD

  • Mfr # 588205

  • Zoro # G0791445

product price:
$
177.99
/ea
Free Shipping & Returns

Key Features

HP
1/200 hp
Voltage
115
Inlet
1/2 in OD
Outlet
1/2 in OD
Max. Head
5 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
588205
Zoro #
G0791445
UPC #
010121889156
Country of Origin
Mexico

Dimensions

Length
4 3/16 in
Width
2 3/4 in
Height
3 5/8 in
Cord Length
6 ft
Intake Pipe Size
1/2 in
Overall Height
3.6 in
Discharge Pipe Size
1/2 in
Overall Length
4.8 in
Manufacturers Warranty Length
1 yr
Overall Width
2.8 in
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in

Details

Item
Magnetic Drive Pump
HP
1/200 hp
Voltage
115
Inlet
1/2 in OD
Outlet
1/2 in OD
Max. Head
5 ft
Housing Material
Glass-Filled Polypropylene
Full Load Amps
0.3 A
GPM of Water @ 3 Ft. of Head
1.75 gpm
Temp. @ 30 psig
70 Degrees F
Series
MD
Temp. @ 0 psig
150 Degrees F
Temp. @ 20 psig
90 Degrees F
Motor Type
Shaded Pole
Gasket Material
Buna-N
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Cord Type
18/3 SJT
Motor Enclosure
Totally Enclosed Fan Cooled
Application
For Submerged or In-line, Suitable for Mild Chemicals at Moderate Temperature, Mild Alkalis Plus Saltwater
Temp. @ 10 psig
120 Degrees F
Impeller Material
Barium Ferrite/Polypropylene
Discharge Pipe Type
Hose
Frequency
60 Hz
Intake Pipe Type
Hose
Feet of Head (Maximum)
5 ft
Nameplate Voltage
115V AC
Full Load Current
0.3 A
Media Temperature (Maximum)
150 Degrees F
Operating Pressure (Maximum)
2.16 psi
Phase
Single
Specific Gravity (Maximum)
1.1
Flow Rate @ 3 ft of Head (Maximum)
1.8 gpm
Horsepower (Maximum)
1/200 hp
Media Temperature - Maximum
150 Degrees F
Media Temperature - Minimum
32 Degrees F
Best Efficiency Flow
1.66 gpm
Best Efficiency Head
3 ft
Chemical Compatibility
Ambient Temperature - Maximum
120 Degrees F
Pump Design
Submersible
Ambient Temperature - Minimum
32 Degrees F
Inlet Standard
Hose
Drive Coupling Type
Magnetic Coupling
Shut Off Pressure - Maximum
2.16 psi
Discharge Standard
Hose
Motor Sealing
Epoxy Encapsulated
Pumping Application
Coolant Recirculating, Liquid Transfer, Water Circulation
Flow Rate (Maximum)
2.5 gpm
Number of Stages
1

Description

Submersible Magnetic Drive Pump, 115 Volt, Water Flow @ 1 Foot of Head 150 GPH, Water Flow @ 2 Feet of Head 130 GPH, Water Flow @ 3 Feet of Head 105 GPH, Water Flow @ 4 Feet of Head 65 GPH, Water Flow @ 5 Feet of Head Shutoff, Length 4 3/16 Inches, Height 3 5/8 Inches, Width 3 5/8 Inches, Saltwater Compatible, Epoxy Encapsulated, For Liquids 32 to 120 Degrees Fahrenheit and 5 to 9 pH Range
