  9. NO External Control Mode Float Switch 115VAC

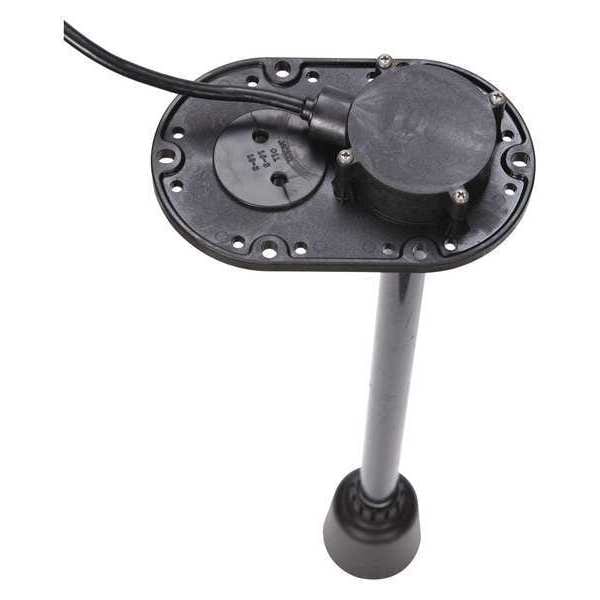

Little Giant Pump NO External Control Mode Float Switch 115VAC 513637 - main

NO External Control Mode Float Switch 115VAC

  • Mfr # 513637

  • Zoro # G2035671

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Diaphragm
Voltage
115VAC
Max. Pressure
18 psi
Amps
10 A
Float Switch On Point
9" to 14" Above Base
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513637
Zoro #
G2035671
UPC #
010121149687
Country of Origin
United States

Dimensions

Float Switch Cord Length
20 ft.
Manufacturers Warranty Length
3 yr
Float Length
3 in
Cord Length
20 ft
Float Diameter
3 in

Details

Switch Type
Diaphragm
Voltage
115VAC
Max. Pressure
18 psi
Item
Float Switch
Amps
10 A
Float Switch On Point
9" to 14" Above Base
Float Switch Off Point
2" to 6" Above Base
Max. Liquid Temp.
120 Degrees F
Max. Wattage
1150
Max. Pressure (PSI)
18
Mounts
Vertical
Series
Pit+Plus Jr - PPJENA
Float Switch Contact Form
Normally Open
Operation
Electronic
Body Material
PVC/Polypropylene
For Use With
Liquid
Connection
Plug
Wire Gauge
18
Electrical Connection (Pumps)
Plug
Electrical Connection - Pumps
Plug
Type
External Control Mode
Float Material
Polypropylene
Standards
UL, CSA
Includes
Alarm, Switch
Contact Form
Normally Open
Rated Voltage
115V AC
Electrical Connection
Piggy-Back Plug
Switch Actuation
Vertical Float
Off Point
3 in Above Base
Contact Default
Normally Open
On Point
11-1/4 in Above Base
Number of Floats
1
NEC Cord Designation
SJTW
Electric Load Current - Maximum
16A @ 125/250V AC
Actuation Method
Sensor
Liquid Temperature - Maximum
135 Degrees F
Running Current - Maximum
16 A
Starting Current - Maximum
20 A
Compatible Manufacturer Part Number
9JF2V2D, Pit+Plus Jr Series
Compatible Pump Type
Sewage Pump

Description

Float Switch

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
