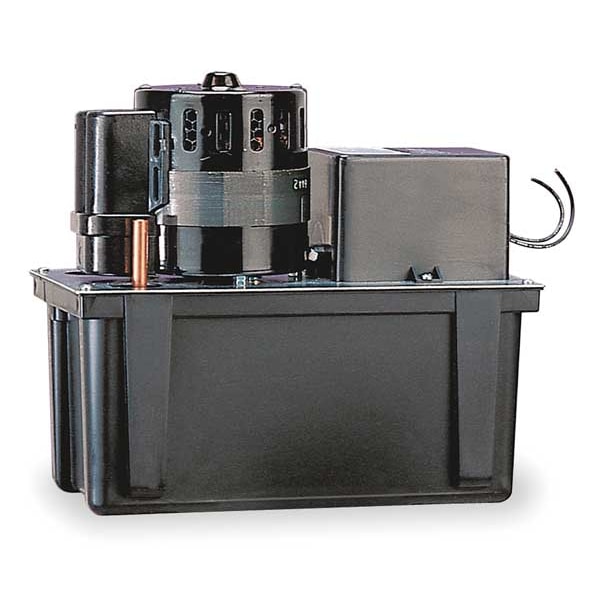

Little Giant Pump Pump, Condensate, 230 V 553245 - main

Pump, Condensate, 230 V

  • Mfr # 553245

  • Zoro # G3261395

product price: $421.99
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
Condensate
Reservoir Size - Pumps
Large
Voltage
230
HP - Pumps
1/5 hp
Voltage - Pumps
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
553245
Zoro #
G3261395
UPC #
010121539068
Country of Origin
Mexico

Dimensions

Reservoir Size - Pumps
Large
Discharge Size - Pumps
3/8 in Copper Tube
Height
10 1/2 in
Cord Length
6 ft
Width
6 in
Length
12 in
Overall Height
10.85 in
Overall Length
12.11 in
Overall Width
6 in
Compatible Intake Pipe Size
1 1/8 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3/8 in
For Discharge Pipe Diameter
3/8 in
For Inlet Pipe Diameter
1 1/8 in

Details

Item
Condensate Removal Pump
Condensate Pumps - Type
Condensate
Voltage
230
HP - Pumps
1/5 hp
Voltage - Pumps
230V AC
Reservoir Capacity - Pumps
1 gal
Max. Temp - Pumps
120 Degrees F
Max. Temp.
120 Degrees F
GPH of Water @ 9 Ft. of Head
415
Max. Head - Pumps
45 ft
GPH of Water @ 15 Ft. of Head
380
Includes
5 in Lead Wires
Watts
250 W
Standards
cCSAus
Shaft Material
Stainless Steel
Shut-Off
45 ft.
Float Material
Polypropylene
GPH of Water @ 12 Ft. of Head
400
Discharge
3/8" Copper Tube
GPH of Water @ 30 Ft. of Head
250
Reservoir Capacity
1 gal.
Pump Type
Standard
HP
1/5
Amps
1 A
GPH of Water @ 5 Ft. of Head
440
GPH of Water @ 1 Ft. of Head
450
Application
Condensate Removal
Tank Material
Plastic
Maximum Feet of Head
45 ft
Frequency
50/60 Hz
Shut Off Level
2.18 in
Horsepower
1/4 hp
Intake Connection Style
Open
Maximum Flow Rate @ 20 Feet of Head
5.4 gpm
Phase
Single
Maximum Ambient Temperature
120 Degrees F
Series Family
VCL
Pump Activation Type
Float Switch
Maximum Flow Rate @ 1 Feet of Head
7.5 gpm
Compatible Media Type
Water
Maximum Flow Rate @ 30 Feet of Head
3.5 gpm
Maximum Flow Rate @ 10 Feet of Head
6.87 gpm
Turn On Level
3.8 in
Maximum Flow Rate @ 25 Feet of Head
4.17 gpm
Series
VCL-45ULS
Nameplate Voltage
230V AC
Maximum Media Temperature
120 Degrees F
Maximum Operating Pressure
19.5 psi
Tank Capacity
1 gal
Pump Housing Material
ABS Plastic
Maximum Flow Rate @ 15 Feet of Head
6.33 gpm
Maximum Flow Rate @ 40 Feet of Head
1 gpm
Discharge Connection Style
Barbed
Plenum Rated
No
Body Gasket Material
Stainless Steel
Maximum Flow Rate @ 5 Feet of Head
7.33 gpm
For Use With Potable Systems
No
Electrical Connection Type
Plug-In
Feet of Head - Maximum
45 ft
For Media Type
Clear Water
Includes Tubing
No Tubing Included
For HVAC System Duct
Ducted
Power Source
Corded Electric
Tank Opacity
Solid
Priming
Self-Priming
Product Type
Condensate Removal Pump
Operating Pressure - Maximum
19.5 psi
Pump Casing Material
Plastic
Includes Safety Switch
Safety Switch Included
Number of Inlets
1
Media Temperature - Minimum
33 Degrees F
Pump Technology
Centrifugal
Installation
Floor Standing
Media Temperature - Maximum
120 Degrees F
Discharge Standard
Barbed
Full Load Current
1 A
Ambient Temperature - Maximum
120 Degrees F
Inlet Standard
Open

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/4 hp, Includes 5 in Lead Wires, Intake Connection Style Open, Maximum Feet of Head 45 ft, Maximum Flow Rate @ 10 Feet of Head 6.87 gpm, Maximum Flow Rate @ 15 Feet of Head 6.33 gpm, Maximum Flow Rate @ 1 Foot of Head 7.5 gpm, Maximum Flow Rate @ 20 Feet of Head 5.4 gpm, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 230V AC, Plenum Rated No, Pump Type Standard, Series VCL-45ULS, Series Family VCL

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
