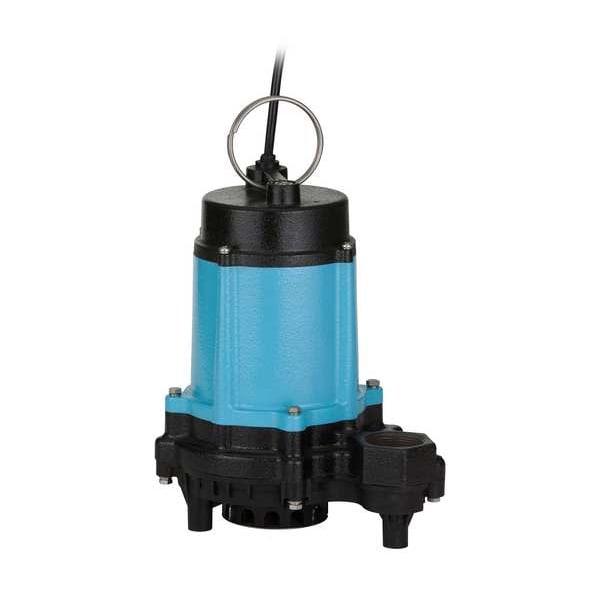

SubmersibleSumpPump, 10ft, 11.125in, 115VAC

  • Mfr # 510801

  • Zoro # G501977303


product price: $328.49
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
HP
1/2
Hz
60 Hz
Impeller Material
Nylon
Max. Head
36 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
510801
Zoro #
G501977303
UPC #
0010121149182
Country of Origin
China

Dimensions

Cord Length
10 ft
Manufacturers Warranty Length
3 yr
Min. Sump Pit Dia.
11 in
Width at Widest Point
8 7/8 in
Discharge Dia.
1 1/2 in
Max. Diameter Solids
1/2 in
Overall Height
11 1/8 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Body Diameter
8 1/2 in
Solids Diameter - Maximum
1/2 in

Details

HP
1/2
Hz
60 Hz
Impeller Material
Nylon
Max. Head
36 ft
Phase
Single
Switch Electrical Connection
No Switch Included
Flow Rate @ 10 Ft. of Head
57 gpm
Base Material
Polypropylene
Agency Compliance
cCSAus Listed
Body Material
Cast Iron
Flow Rate @ 20 Ft. of Head
47 gpm
Application
Dewatering, Transfer, Waste Removal
Gauge/Conductor
18/3
Flow Rate @ 15 Ft. of Head
52 gpm
Discharge Standard
NPT
Duty Cycle
Continuous
Item
Submersible Sump Pump
Discharge
1 1/2 in FNPT
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
Rated Voltage
115V AC
Switch Actuation
No Switch Included
Thermal Protection
Auto
NEC Cord Designation
SJTW
Max. Liquid Temp.
140 Degrees F
Discharge Gender
Female
Series
10EC-CIM
Flow Rate @ 5 Ft. of Head
67 gpm
Amps
6.5 A
Alarm Included
No
Shaft Seal Material
Ceramic/Nitrile Rubber
Shaft Seal Type
Single Mechanical
Power Source
Corded Electric
Rotation Speed - Maximum
3,450 RPM
Motor Housing Material
Cast Iron
Flow Rate @ 10 ft of Head
57 gpm
Includes Alarm
No Alarm Included
Liquid Temperature - Maximum
140 Degrees F
For Media Type
Effluent Water
Installation
Submersible
Hazardous Location Class
Not Rated
Frequency
60 Hz
Volute Material
Cast Iron
Impeller Design
Semi-Open
Requires Control Panel
No Control Panel Required
Feet of Head - Maximum
36 ft
Current
6.5 A
Horsepower
1/2 hp
Operation
Manual
Standards
cCSAus
For Industry
Residential

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 6.5 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Off Point Not Applicable, On Point Not Applicable, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Flow Rate @ 5 Ft. of Head 67 gpm, Flow Rate @ 10 Ft. of Head 57 gpm, Flow Rate @ 15 Ft. of Head 52 gpm, Flow Rate @ 20 Ft. of Head 47 gpm, Max. Head 36 ft
