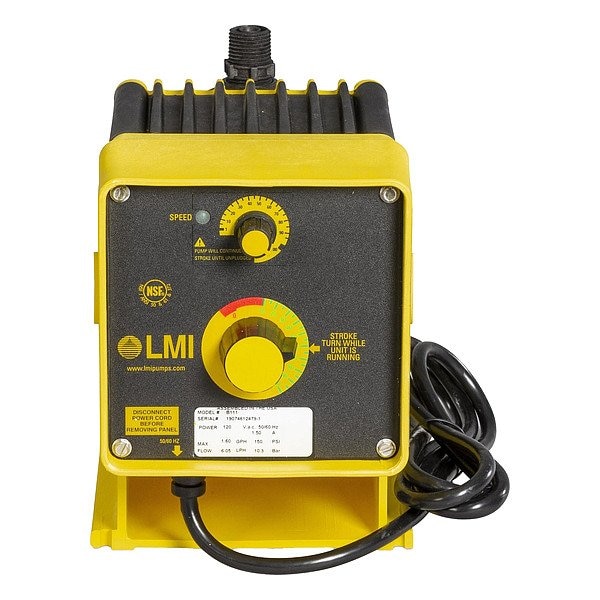

ChemicalMeteringPump, 168gpd, PVCHead
- Mfr # B141-318SI
- Zoro # G116292204
product price:Â
$
2,596.99
/ea
Free Shipping & Returns
Key Features
Overall Length
14.74 in
Stroke Rate (Maximum)
100 stroke/min
Standards
CE Certified, CUL, NSF 372, NSF 50, NSF 61, UL
Overall Height
12.26 in
Turn Down Ratio
1000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- B141-318SI
- Zoro #
- G116292204
- UPC #
- -
- Country of Origin
- United States
- Stroke Rate (Maximum)
- 100 stroke/min
- Standards
- CE Certified, CUL, NSF 372, NSF 50, NSF 61, UL
- Turn Down Ratio
- 1000:1
- Pump Drive Type
- Solenoid
- Check Ball Material
- Ceramic
- Head Material
- PVC
- Operating Pressure (Maximum)
- 30 psi
- Control Programs
- Manual Control
- Flow Rate (Maximum)
- 168 gpd
- Housing Material
- Thermoplastic
- Fitting Material
- PVC
- Frequency
- 50/60 Hz
- Item
- Chemical Metering Pump
- Nameplate Voltage
- 115V AC
- Viscosity (Maximum)
- 400 cps
- Phase
- Single
- Degassing Valve Included
- No
- Reproducibility
- +/-1.0%
- Media Temperature (Maximum)
- 122 Degrees F
- Diaphragm Material
- PTFE
- Priming
- Manual
- Seal Material
- PVDF/Polyprel
Dimensions
- Overall Length
- 14.74 in
- Overall Height
- 12.26 in
- Intake Connection Size
- 1/2 in
- Overall Width
- 5.7 in
- Discharge Connection Size
- 1/2 in
- Wire Rope Length
- 14.74 in
- Length
- 14.74 in
Description
Chemical Metering Pump, Chemical Compatibility Not Applicable, Control Programs Manual Control, Diaphragm Material PTFE, Discharge Connection Size 1/2 in, Discharge Connection Type Not Applicable, Fitting Material PVC, Flow Rate (Maximum) 168 gpd, Head Material PVC, Intake Connection Size 1/2 in, Intake Connection Type Not Applicable, Nameplate Voltage 115V AC, Operating Pressure (Maximum) 30 psi, Reproducibility +/-1.0 Percent, Seal Material PVDF/Polyprel, Turn Down Ratio 1000:1
Restrictions
This item has been restricted from sale in the following states:
CA
