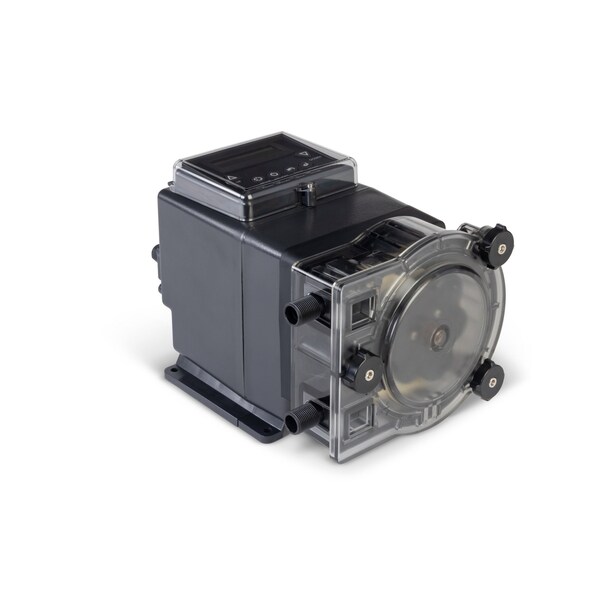

PeristalticChemMeteringPump, 60gpd, 100psi

Mfr # S407X
Zoro # G108595665

1,765.99

Free Shipping & Returns

Key Features

Flow Rate Output Control

Adjustable

Standards

CE, IAPMO, ETL, IP65, NEMA 4X, NSF/ANSI, NSF/ANSI 372, NSF/ANSI 61

Includes

20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules

Phase

Single

Reproducibility

+/-2.0%

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: S407X
Zoro #: G108595665
UPC #: 840034750942
Country of Origin: United States

Dimensions

Cord Length: 6 ft
Overall Height: 7 in
Overall Width: 11 in
Overall Length: 7.2 in
Manufacturers Warranty Length: 2 yr
Intake Connection Size: 3/8 in
Discharge Connection Size: 3/8 in
Wire Rope Length: 7.2 in
Length: 7.2 in

Details

Flow Rate Output Control: Adjustable
Standards: CE, IAPMO, ETL, IP65, NEMA 4X, NSF/ANSI, NSF/ANSI 372, NSF/ANSI 61
Includes: 20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Phase: Single
Reproducibility: +/-2.0%
Item: Peristaltic Chemical Metering Pump
Number of Feeds: 1
Tubing Material: Santoprene
Turn Down Ratio: 100:1
Housing Material: Polycarbonate
Flow Rate (Maximum): 60 gpd
Ambient Temperature (Maximum): 104 Degrees F
Frequency: 60 Hz
Priming: Self-Priming
Motor Enclosure: Totally Enclosed
Viscosity (Maximum): 1,500 cps
Motor Speed (Maximum): 45 RPM
Duty Cycle: Continuous
Motor Type: DC
Electrical Connection Type: Plug-In
Flow Rate (Minimum): 0.6 gpd
Roller Material: Polyethylene
Intake Connection Type: NPT
Chemical Compatibility: Ammonium Hydroxide,Antifreeze,Hydrochloric Acid 10%,Hydrochloric Acid 20%,Hydrochloric Acid 30%,Phosphoric Acid 100%,Phosphoric Acid 40%,Phosphoric Acid 50%,Phosphoric Acid 60%,Phosphoric Acid 70%,Phosphoric Acid 80%,Phosphoric Acid 90%,Potassium Hydroxide 50%,Sodium Hydroxide 20%,Sodium Hypochlorite 10%,Sodium Hypochlorite 5%,Sulfuric Acid 10%,Sulfuric Acid 20%,Sulfuric Acid 30%,Sulfuric Acid 40%,Water
Horsepower (Maximum): 1/16 hp
Media Temperature (Minimum): 32 Degrees F
Control Programs: 0-10 VDC Input, 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Pulse
Degassing Valve Included: No
Pressure (Maximum): 100 psi
Nameplate Voltage: 120V AC
Discharge Connection Type: NPT
Media Temperature (Maximum): 104 Degrees F
Head Material: Polycarbonate/Santoprene
Fitting Material: Polypropylene/PVC
Motor Thermal Protection: Auto
Motor Mounting Type: Horizontal, Vertical
Seal Material: Santoprene
Motor Enclosure Design: Totally Enclosed
Seal Type: O-Ring
Pump Technology: Peristaltic

Description

Peristaltic Chemical Metering Pump, Control Programs 0-10 VDC Input, 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Pulse, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 60 gpd, Flow Rate (Minimum) 0.6 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 3/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC
