Shop MACROMATIC

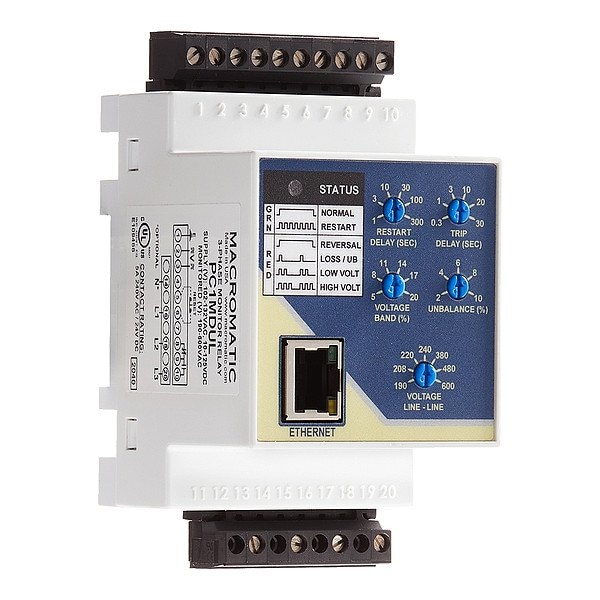

CommPhaseRely, 20Pin, 10-132VDC/102-132VAC

  • Mfr # PC1MDUL-G

  • Zoro # G608377839

product price:
$
569.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
10 to 132V DC, 102 to 132V AC
Power Consumption
3 VA
Standards
cULus, UL E109466
Contact Form
SPDT
Phase Unbalance
2 to 10%
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PC1MDUL-G
Zoro #
G608377839
UPC #
-
Country of Origin
United States

Dimensions

Body Width
2.36 in
Body Depth
2.6 in
Body Height
4.36 in

Details

Item
Communicating Phase Relay
Input Voltage
10 to 132V DC, 102 to 132V AC
Power Consumption
3 VA
Standards
cULus, UL E109466
Contact Form
SPDT
Phase Unbalance
2 to 10%
Minimum Operating Temperature
-18 Degrees F
Restart Time Delay
1 to 300 sec
Mechanical Operating Durability
30,000,000
Restart
Auto, Manual
Undervoltage
190 to 600V AC
Frequency
50/60 Hz
Features
Real Time Alerts and Data, LED Indicator, True RMS Voltage Measurement
Monitored Parameters
Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
Maximum Operating Temperature
149 Degrees F
Contact Rating (AC)
5 A @ 250V
Mounting Style
DIN Rail
Phase Reversal
Yes
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC
Contact Rating (DC)
5 A @ 24V
Phase Loss Sensitivity
Yes
Overvoltage
Adjustable 105 to 120% of Line Voltage Setting
Minimum Switching Current
100 mA
Current Rating
5 A
Number of Pins
20

Description

Communicating Phase Relay, Contact Form SPDT, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 24V, Current Rating 5 A, Input Voltage 10 to 132V DC, 102 to 132V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 20, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style DIN Rail, Body Depth 2.6 in, Body Height 4.36 in, Body Width 2.36 in, Electrical Operating Durability 100,000
