  9. SPDT Tilt Float Switch 120/240VAC 14.7 psi

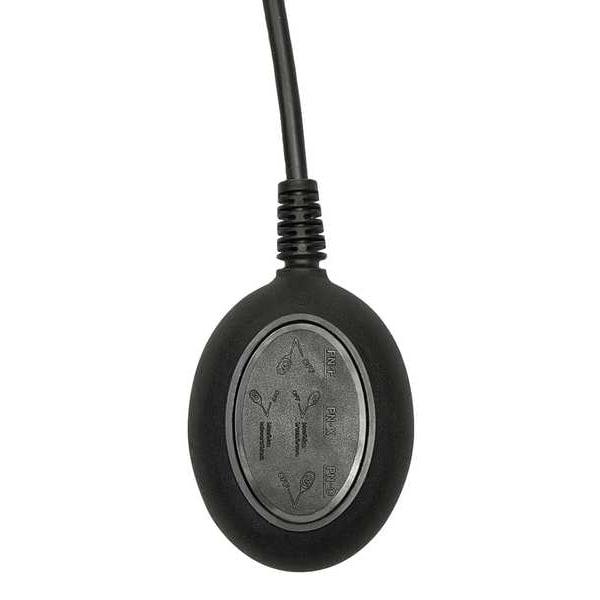

Madison SPDT Tilt Float Switch 120/240VAC 14.7 psi M4546 - main

SPDT Tilt Float Switch 120/240VAC 14.7 psi

  • Mfr # M4546

  • Zoro # G4299154

product price: $33.89
/ea

Key Features

Voltage
120/240VAC
Max. Pressure
14.7 psi
Amps
8 A
Operation
SPDT
Includes
Cable, Mounting Weight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M4546
Zoro #
G4299154
UPC #
-
Country of Origin
China

Dimensions

Height
1.89
Width
3.27
Overall Length (In.)
5.63
Float Length (In.)
5.63
Length
5.63
Tether Length Min.-Max.
6"
Float Switch Cord Length
6 ft. 6"
Manufacturers Warranty Length
1 yr
Float Length
5 5/8 in
Cord Length
6 1/2 ft
Tether Length - Maximum
2 m
Float Diameter
3 1/4 in
Tether Length - Minimum
6 in

Details

Voltage
120/240VAC
Max. Pressure
14.7 psi
Item
Float Switch
Amps
8 A
Operation
SPDT
Includes
Cable, Mounting Weight
Max. Pressure (PSI)
14.7
Wire Gauge
18 AWG
VA Rating
8A
Agency Compliance
None
Body Material
EPDM
Max. Liquid Temp.
158 Degrees F
Specific Gravity
0.7 - 1.3
Float Switch Float Material
Polypropylene
Wire Lead
PVC Jacketed Cable
Float Switch Contact Form
SPDT
Float Switch Type
Tether
Teather/Solid State
Tether
Pumping Range Min./Max.
12/134
Float Material
Polypropylene
Mounts
Tethered
Contact Form
Normally Open or Normally Closed
Off Point
45 Degrees Below Horizontal
Switch Actuation
Sensor
Rated Voltage
250V AC
On Point
45 Degrees Above Horizontal
Electrical Connection
3-Conductor Wire Leads
Contact Default
Normally Open/Normally Closed
Electric Load Current - Maximum
16A @ 250V AC
Counterweight Type
External
Number of Floats
1
Liquid Temperature - Maximum
158 Degrees F
Running Current - Maximum
16 A
Compatible Pump Type
Dewatering Pump, Grinder Pump, Sewage Pump, Sump Pump
Actuation Method
Mechanically-Activated

Description

Float Switch
