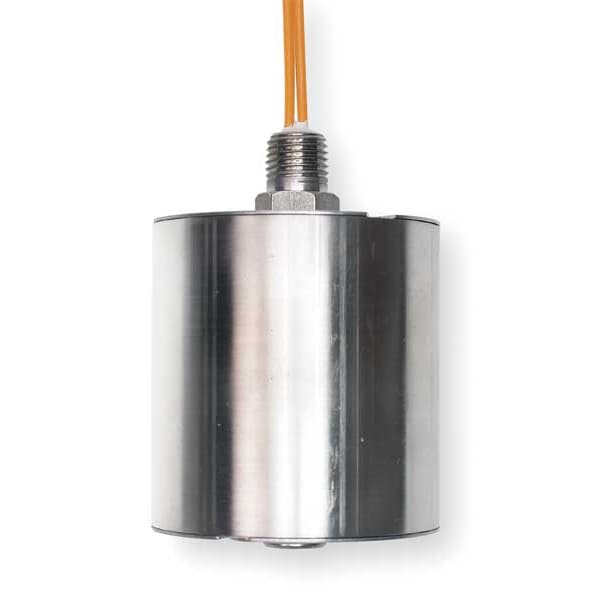

SPST Liquid Level Switch Selectable 240VAC 200 psi

  • Mfr # MS5917

  • Zoro # G3441794

product price:  $102.99
/ea
Free Shipping & Returns

Key Features

Voltage
240VAC
Max. Pressure
200 psi
Body Material
Stainless Steel
Standards
CSA
Operating Temp. Range
482 Degrees F Max
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MS5917
Zoro #
G3441794
UPC #
094704142432
Country of Origin
United States

Dimensions

Float Dia.
2.13 in
Float Length
2 in
Width
3.38 in
Stem Length
2.63 in
Height
3.38 in
Conduit Size
1/4 in
Overall Length
3.38 in
Tank Connection Size
1/4 in NPT
Stem Thread Size
1/4 in NPT
Overall Height
3.38 in
Overall Width
3.38 in
Float Diameter
2.13 in
Wire Rope Length
3.38 in

Details

Voltage
240VAC
Max. Pressure
200 psi
Item
Alternator Closed Liquid Level Switch
Body Material
Stainless Steel
Standards
CSA
Operating Temp. Range
482 Degrees F Max
Float Specific Gravity
0.55
Switch Function
Selectable
Electrical Connections
18 AWG PTFE Coated 24 in Leads
Contact Form
SPST
Stem Material
Stainless Steel
Float Material
Stainless Steel
Mounting
Vertical Open Tank
Float Switch Float Material
Stainless Steel
VA Rating
60
Float Switch Contact Form
SPST
Max. Current
0.5 A
Max. Voltage
240 V
Current Rating - Maximum
0.5 A
Product Type
Alternator Closed Liquid Level Switch
Mounting Style
Vertical
Minimum Media Specific Gravity
0.55
Operating Temperature - Maximum
482 Degrees F
Voltage Rating - Maximum
240 V AC
Electrical Connection
Pre-Wired Cable
Proof Pressure
200 psi
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/4 in NPT, Max. Pressure 200 psi, VA Rating 60, Operating Temp. Range 482 Degrees F Max, Overall Length 3.38 in, Float Material Stainless Steel, Float Length 2 in, Float Dia. 2.13 in, Stem Material Stainless Steel, Stem Length 2.63 in, Height 3.38 in, Width 3.38 in, Contact Form SPST, Max. Current 0.5 A, Max. Voltage 240 V, Body Material Stainless Steel, Conduit Size 1/4 in
