  9. SPST Tank Liquid Level Switch Selectable 240VAC 100 psi
Shop All Level Switches
Madison

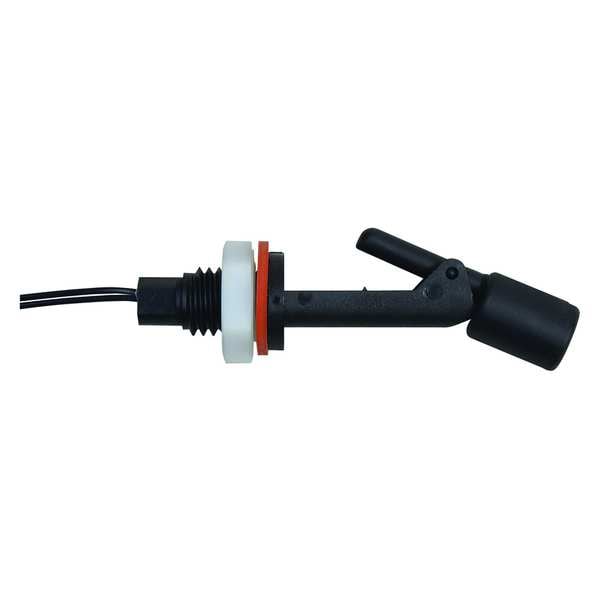

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

original price: $21.89
11% off
new price: $19.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 100 psi
  • Width 0.6 in
  • Operating Temp. Range 266 Degrees F Max.
  • Float Dia. 0.65 in
See all product information

Product Information

Dimensions

Width 0.6 in
Float Dia. 0.65 in
Overall Length 4.02 in
Stem Length 2.96 in
Float Length 2.11 in
Conduit Size 5/8 in 11
Tank Connection Size 5/8 in - 11 UNC
Overall Width 0.6 in
Float Diameter 0.65 in
Stem Thread Size 5/8-11 UNC

Details

Voltage 240VAC
Max. Pressure 100 psi
Operating Temp. Range 266 Degrees F Max.
Float Switch Contact Form SPST
Electrical Connections 22 ga PTFE Coated 24 in Leads
Float Material PBT
Max. Voltage 240 V
Switch Function Selectable
Float Specific Gravity 0.7
Max. Current 0.28 A
Body Material PBT
Item Alternator Closed Liquid Level Switch
Contact Form SPST
Mounting Side
Standards CE, CSA, UL Listed
VA Rating 30
Float Switch Float Material Polybutylene Terephthalate
Stem Material PBT
Series M7790
Product Type Alternator Closed Liquid Level Switch
Voltage Rating - Maximum 120 V DC, 240 V AC
Proof Pressure 100 psi
Electrical Connection Lead Wires
Current Rating - Maximum 0.28 A
Minimum Media Specific Gravity 0.94
Operating Temperature - Maximum 266 Degrees F

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 5/8 in - 11 UNC, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 266 Degrees F Max., Overall Length 4.02 in, Float Material PBT, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material PBT, Stem Length 2.96 in, Height -, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material PBT, Conduit Size 5/8 in 11, Standards CE, CSA, UL Listed
