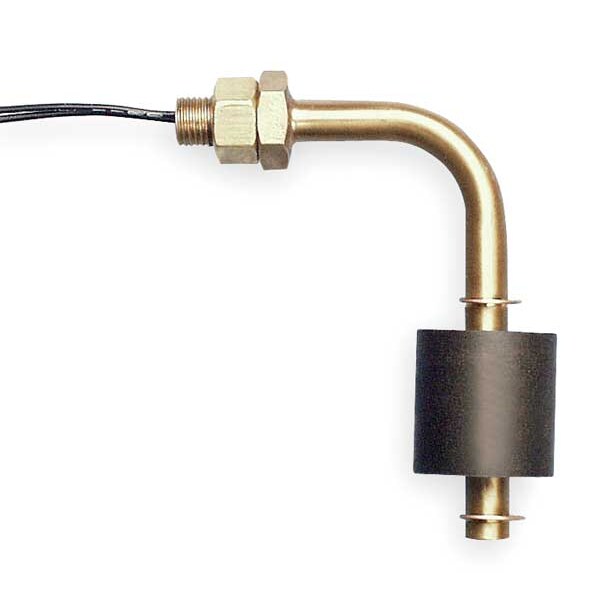

SPST Tank Liquid Level Switch Selectable 240VAC 150 psi

  • Mfr # M4010
  • Zoro # G1573214
product price:
$
56.29
/ea

Key Features

Voltage
240V AC
Max. Pressure
150 psi
Float Specific Gravity
0.45
Float Length
1 in
Standards
CE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M4010
Zoro #
G1573214
UPC #
-
Country of Origin
United States

Dimensions

Float Length
1 in
Stem Length
2.96 in
Width
1 in
Height
2.96 in
Tank Connection Size
3/8 in - 24 UNF
Conduit Size
3/8 in 20
Float Dia.
1.0 in
Overall Length
2.96 in
Overall Width
1 in
Overall Height
2.96 in
Stem Thread Size
3/8-24 UNF
Float Diameter
1 in
Wire Rope Length
2.96 in
Length
2.96 in

Details

Voltage
240V AC
Max. Pressure
150 psi
Item
Alternator Closed Liquid Level Switch
Float Specific Gravity
0.45
Standards
CE
Max. Current
0.28 A
Max. Voltage
240V
VA Rating
30
Contact Form
SPST
Switch Function
Selectable
Mounting
Side
Operating Temp. Range
221 Degrees F Max
Electrical Connections
22 ga PTFE Coated 24 in Leads
Stem Material
Brass
Float Switch Contact Form
SPST
Body Material
Brass
Float Material
Buna-N
Float Switch Float Material
Buna-N
Product Type
Alternator Closed Liquid Level Switch
Voltage Rating - Maximum
240 V AC
Operating Temperature - Maximum
221 Degrees F
Current Rating - Maximum
0.28 A
Minimum Media Specific Gravity
0.45
Proof Pressure
150 psi
Electrical Connection
Pre-Wired Cable
Mounting Style
Side
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 3/8 in - 24 UNF, Max. Pressure 150 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 2.96 in, Float Material Buna-N, Float Length 1 in, Float Dia. 1.0 in, Stem Material Brass, Stem Length 2.96 in, Height 2.96 in, Width 1 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Brass, Conduit Size 3/8 in 20, Standards CE
