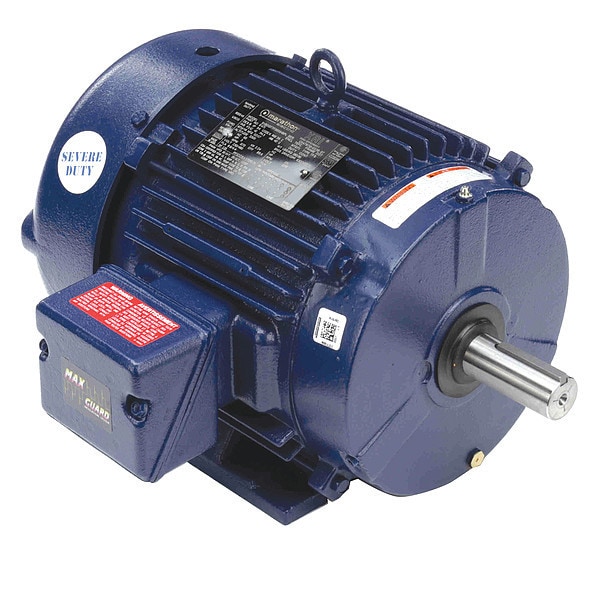

3-Phase Cooling Tower Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

  • Mfr # 215TTFCD6546
  • Zoro # G6562129
product price:
$
1,741.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
10
Nameplate RPM
1,765
Frame
215T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFCD6546
Zoro #
G6562129
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
22 5/8 in
Shaft Length
3 1/2 in
Length Less Shaft
19 1/8 in
Shaft Dia.
1 3/8 in
Frame Size
215T
Shaft Diameter
1 3/8 in
Wire Rope Length
22 5/8 in
Length
22 5/8 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
10
Nameplate RPM
1,765
Frame
215T
Motor Shaft Rotation
CW/CCW
Full Load Amps
26.6/13.3 A
Voltage
230V AC, 460V AC
Nominal Efficiency
91.7 %
Conduit Box Position
F1
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
CC Number
CC003A
Motor Service Factor
1.15
Hz
50/60 Hz
Motor Bearings
Ball
Motor Frame Material
Cast Iron
RPM Range
1,701-1,800
Motor Thermal Protection
None
Motor Mounting Position
Horizontal or Vertical Shaft Up
Warranty
1 yr
Ins. Class
F
Finish
Epoxy-Coated
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Ambient Temperature
40 Degrees C
Motor Application
Cooling Tower
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Full Load Amps @ 50Hz
26.6/13.3 A
Full Load Current @ 50 Hz
26.6/13.3 A
Insulation Class
F
Mounting Position
Horizontal/Vertical Shaft Up
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
Bearing Type
Ball
Application
Cooling Tower
Full Load Current @ 60 Hz
26.6/13.3 A
Product Type
Cooling Tower Motor
Frame Material
Cast Iron
Nameplate Service Factor @ 60 Hz
1.15

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 10 hp HP, 1,765 RPM Nameplate RPM, 215T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 26.6/13.3 A Full Load Amps, Three Phase, 60/50 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 3/8 in, Shaft Length 3 1/2 in
