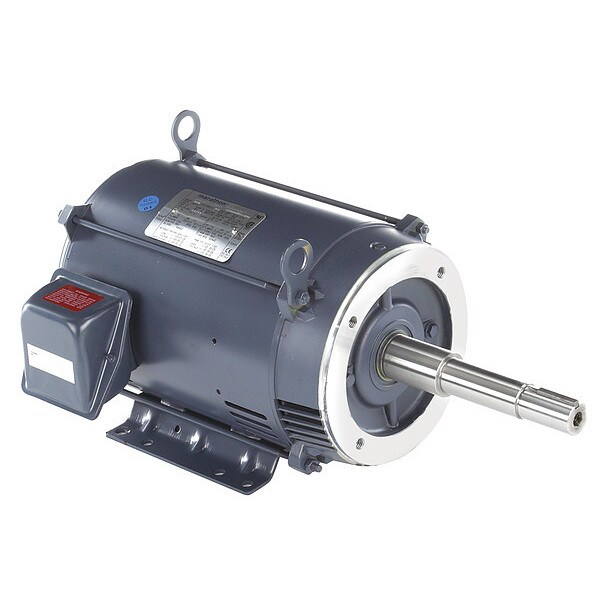

CC Pump Motor, 3-Phase, 10 HP, 3450 rpm

  • Mfr # 213TTDBD6012
  • Zoro # G8818914
product price:
$
1,159.99
/ea
Additional $70.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10 hp
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TTDBD6012
Zoro #
G8818914
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
8 1/8 in
Shaft Dia.
1 1/4 in
Overall Length
23 1/8 in
Length Less Shaft
15 in
Bolt Circle Dia.
7 1/4 in
Height
11 in
Body Dia.
9.5 in
Shaft Diameter
1 1/4 in
Body Diameter
9.5 in
Bolt Circle Diameter
7 1/4 in
Frame Size
213JP
Wire Rope Length
23 1/8 in
Length
23 1/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
10 hp
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
Frame
213JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Thermal Protection
None
Motor Bearings
Ball
Phase
Three
Motor Application
Pump
CC Number
CC003A
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Standards
CE Mark, CSA Certified, UL Recognized
Motor Frame Material
Steel
Inverter Rated
Inverter Rated
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Close-Coupled Pump
Full Load Amps
24.2/12.1 A
Motor Efficiency Group
NEMA Premium Efficient
Motor Shaft Design
JP Threaded
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Ins. Class
F
Frame Material
Steel
Duty
Continuous
Nominal Efficiency
89.8 %
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
158 lb
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Shaft Design
Threaded
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Full Load Current @ 60 Hz
24.2/12.1 A
Efficiency Rating
Premium Efficiency (IE3)
Shaft Thread Type
JP
Mounting Position
Horizontal
Application
Pump
Insulation Class
F
Constant Torque Rating
2:1 Constant Torque
Product Type
Pump Motor
Frequency
60 Hz

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JP, Hz 60 Hz, Full Load Amps 24.2/12.1, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
