Marathon CC Pump Motor, 3-Phase, TEFC, 50HP, 230/460V 326TTFCD6037 - main
Shop MARATHON

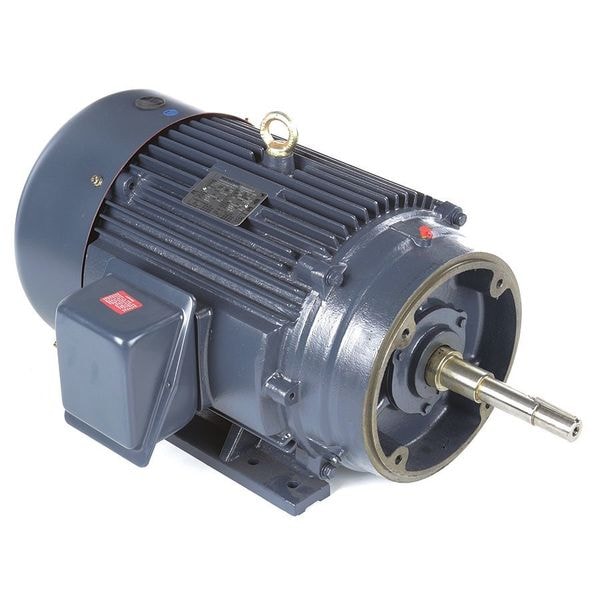

CC Pump Motor, 3-Phase, TEFC, 50HP, 230/460V

  • Mfr # 326TTFCD6037

  • Zoro # G9907213

product price:  $6,521.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
50
RPM Range
1,701-1,800
Nameplate RPM
1,780
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
326TTFCD6037
Zoro #
G9907213
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
24 7/16 in
Shaft Length
11 in
Overall Length
35 7/16 in
Shaft Dia.
1 3/8 in
Bolt Circle Dia.
11 in
Height
19 1/2 in
Body Dia.
17.6 in
Frame Size
326JP
Shaft Diameter
1 3/8 in
Body Diameter
17.6 in
Bolt Circle Diameter
11 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
50
RPM Range
1,701-1,800
Nameplate RPM
1,780
Voltage
230/460V AC
Frame
326JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
CC Number
CC003A
Motor Thermal Protection
None
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
Hz
60 Hz
Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Standards
CE, CSA, UL Listed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
94.5 %
Ins. Class
F
Phase
Three
Full Load Amps
117.0/58.5
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Frame Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Design
Keyed, Threaded
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Inverter Rating
10:1
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Location
Exterior
NEMA Design
B
Weight
698 lb
Conduit Box Position
F1, F2
Shaft Type
JP Threaded
Bearing Type
Ball
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
Number of Speeds
1
Shaft Thread Type
JP
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
117.0/58.5 A
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Product Type
Pump Motor
Application
Pump

Description

Close-Coupled Pump Motor, Body Dia. 17.6 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 326JP, Hz 60 Hz, Full Load Amps 117.0/58.5, Height 19 1/2 in, HP 50, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 24 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
