Shop MARATHON

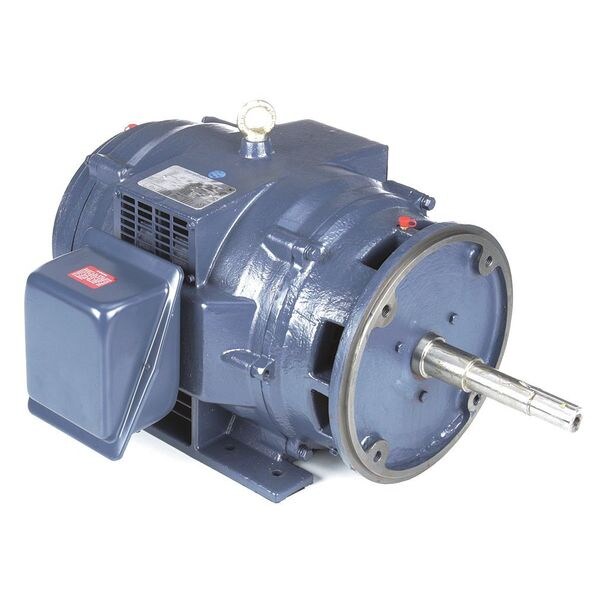

CC Pump Motor, 3-Phase, 40 HP, 3450 rpm

  • Mfr # 286TTDBD6012

  • Zoro # G2219686

product price:  $3,383.99
/ea
Additional $255.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
40
RPM Range
3,001-3,600
Nameplate RPM
3,560
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TTDBD6012
Zoro #
G2219686
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
30 3/16 in
Shaft Dia.
1 1/4 in
Length Less Shaft
21 13/16 in
Shaft Length
8 1/2 in
Bolt Circle Dia.
11 in
Height
15 in
Bolt Circle Diameter
11 in
Frame Size
286JP
Shaft Diameter
1 1/4 in
Wire Rope Length
30 3/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
40
RPM Range
3,001-3,600
Nameplate RPM
3,560
Voltage
230/460V AC
Frame
286JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Inverter Rated
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
Keyed, Threaded
Ins. Class
F
Hz
60 Hz
Motor Application
Pump
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
Standards
CE Mark, CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Frame Material
Steel
Duty
Continuous
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Phase
Three
Motor Efficiency Group
NEMA Premium Efficient
Motor Thermal Protection
None
CC Number
CC003A
Full Load Amps
93.0/46.5 A
Frame Material
Steel
Nominal Efficiency
92.4 %
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
340 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Full Load Current @ 60 Hz
93.0/46.5 A
Constant Torque Rating
2:1 Constant Torque
Mounting Position
Horizontal
Application
Pump
Insulation Class
F
Bearing Type
Ball
Shaft Design
Keyed
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Shaft Thread Type
JP
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
Premium Efficiency (IE3)
Product Type
Pump Motor

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 286JP, Hz 60 Hz, Full Load Amps 93.0/46.5, Height 15 in, HP 40, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 21 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
