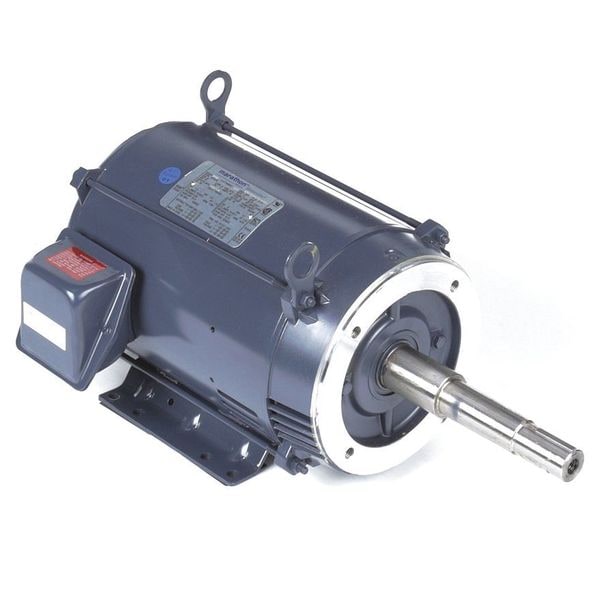

CC Pump Motor, 3-Phase, 7-1/2 HP, 1750 rpm
Mfr # 213TTDBD6037
Zoro # G8818932
product price:Â $1,029.99
/ea
Sold in multiples of 2 for $2,059.98
Additional $35.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
7 1/2
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
213TTDBD6037
Zoro #
G8818932
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
23 1/8 in
Shaft Dia.
1 1/4 in
Length Less Shaft
15 in
Shaft Length
8 1/8 in
Height
11 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
9.5 in
Body Diameter
9.5 in
Frame Size
213JP
Shaft Diameter
1 1/4 in
Bolt Circle Diameter
7 1/4 in
Description
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JP, Hz 60 Hz, Full Load Amps 19.8/9.9, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
