Shop MARATHON

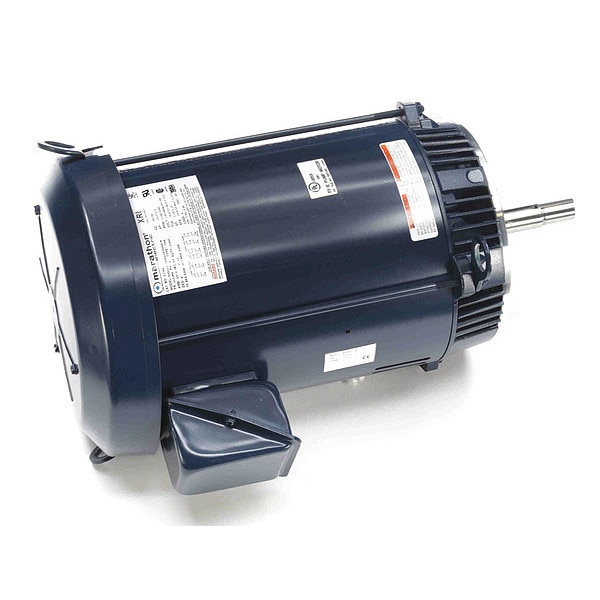

Close-Coupled Pump Motor, 15 HP, 3525 rpm

  • Mfr # 215TTDBD6007

  • Zoro # G8518312

product price:  $1,624.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,515
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
215TTDBD6007
Zoro #
G8518312
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
19 1/4 in
Shaft Length
4 1/4 in
Length Less Shaft
15 in
Height
11 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
9.5 in
Shaft Diameter
7/8 in
Frame Size
215JM
Body Diameter
9.5 in
Bolt Circle Diameter
7 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,515
Voltage
230/460V AC
Frame
215JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Sub Application
Close-Coupled Pump
Full Load Amps
36.0/18.0
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE Mark, CSA Certified, UL Recognized
Motor Enclosure Design
Open Dripproof
Motor Application
Pump
Motor Frame Material
Steel
Hz
60 Hz
Motor Bearings
Ball
Phase
Three
Inverter Rated
Inverter Rated
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
90.9 %
Ins. Class
F
Motor Shaft Design
JM Threaded
Max. Ambient Temp.
40 Degrees C
CC Number
CC003A
Duty
Continuous
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
135 lb
Usable @ 208V
Not Usable at 208V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
NEMA Design
B
No. of Speeds
1
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Full Load Current @ 60 Hz
36.0/18.0 A
Frequency
60 Hz
Constant Torque Rating
2:1 Constant Torque
Application
Pump
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Shaft Thread Type
JM
Shaft Design
Threaded
Bearing Type
Ball
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Mounting Position
Horizontal
Motor Enclosure Type
Open Drip Proof
Insulation Class
F

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 36.0/18.0, Height 11 in, HP 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
