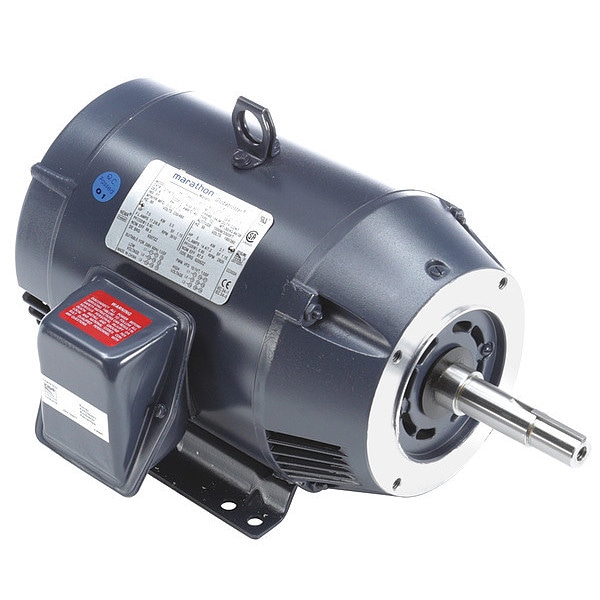

Close-Coupled Pump Motor, 3-Ph, 7-1/2 HP
Mfr # 184TTDBD6007
Zoro # G5786042
product price: $1,079.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
7 1/2
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
184TTDBD6007
Zoro #
G5786042
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/4 in
Overall Length
15 5/8 in
Shaft Length
4 1/4 in
Length Less Shaft
11 3/8 in
Bolt Circle Dia.
5 7/8 in
Height
9 13/16 in
Body Dia.
8.4 in
Description
Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 9 13/16 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
