Shop MARATHON

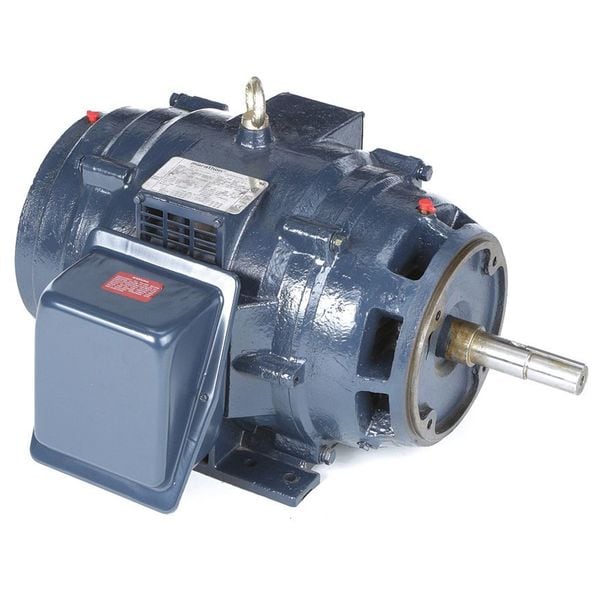

Close-Coupled Pump Motor, 3-Phase, 20 HP

  • Mfr # 254TTDBD6007
  • Zoro # G9922674
product price:
$
1,869.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
20 hp
RPM Range
3,001-3,600
Nameplate RPM
3,550
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTDBD6007
Zoro #
G9922674
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
19 3/16 in
Shaft Dia.
1 1/4 in
Shaft Length
5 1/4 in
Overall Length
24 7/16 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
11.8 in
Height
13 1/2 in
Body Diameter
11.8 in
Shaft Diameter
1 1/4 in
Frame Size
254JM
Bolt Circle Diameter
7 1/4 in
Wire Rope Length
24 7/16 in
Length
24 7/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
20 hp
RPM Range
3,001-3,600
Nameplate RPM
3,550
Voltage
230V AC, 460V AC
Frame
254JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Enclosure Design
Open Dripproof
Motor Sub Application
Close-Coupled Pump
CC Number
CC003A
Duty
Continuous
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Hz
60 Hz
Full Load Amps
48.0/24.0
Ins. Class
F
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CE Mark, CSA Certified, UL Recognized
Nominal Efficiency
91 %
Motor Frame Material
Steel
Motor Bearings
Ball
Phase
Three
Inverter Rated
Inverter Rated
Motor Efficiency Group
NEMA Premium Efficient
Motor Shaft Design
JM Threaded
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Weight
275 lb
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
No. of Speeds
1
Conduit Box Position
F1, F2
Shaft Type
Keyed
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Insulation Class
F
Frequency
60 Hz
Mounting Position
Horizontal
Bearing Type
Ball
Constant Torque Rating
2:1 Constant Torque
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Threaded
Product Type
Pump Motor
Full Load Current @ 60 Hz
48.0/24.0 A
Shaft Thread Type
JM

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 254JM, Hz 60 Hz, Full Load Amps 48.0/24.0, Height 13 1/2 in, HP 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 19 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
