Shop MARATHON

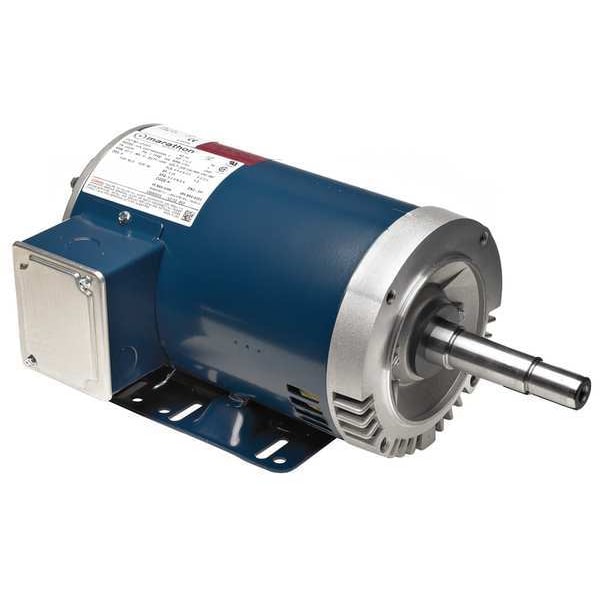

Close-Coupled Pump Motor, 3-Phase, 3 HP

  • Mfr # 182TTDBD6032
  • Zoro # G5545486
product price:
$
643.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
182TTDBD6032
Zoro #
G5545486
UPC #
-
Country of Origin
Mexico
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
3 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Frame
182JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Full Load Amps
8.0/4.0 A
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Inverter Rated
Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Nominal Efficiency
89.5 %
Motor Shaft Design
JM Threaded
Motor Bearings
Ball
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
Frame Material
Steel
Phase
Three
Motor Application
Pump
Motor Efficiency Group
NEMA Premium Efficient
Duty
Continuous
CC Number
CC003A
Motor Thermal Protection
None
Ins. Class
F
Standards
CE Mark, CSA Certified, UL Recognized
Motor Frame Material
Steel
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Location
Exterior
NEMA Design
A
Weight
92 lb
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Shaft Type
Keyed
Full Load Current @ 60 Hz
8.0/4.0 A
Mounting Position
Horizontal
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
A
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Shaft Thread Type
JM
Nameplate Service Factor @ 60 Hz
1.15
Application
Pump
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Bearing Type
Ball
Shaft Design
Threaded
Constant Torque Rating
2:1 Constant Torque

Description

Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 8.0/4.0, Height 9 13/16 in, HP 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
