Shop MARATHON

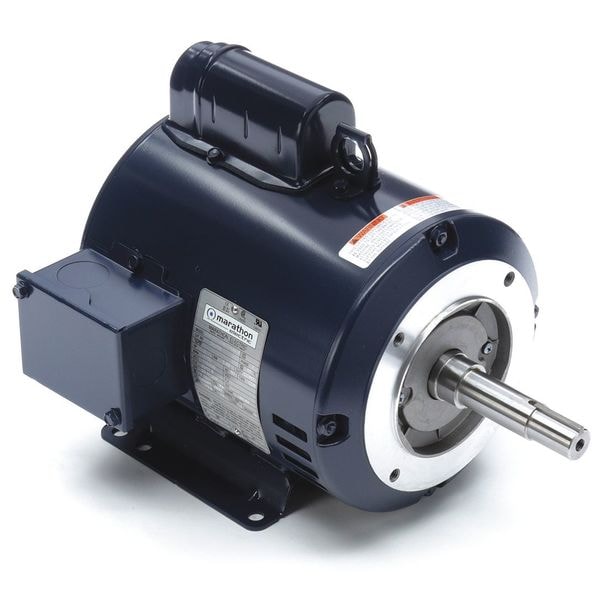

Close-Coupled Pump Motor2 HP, 1750 rpm

  • Mfr # 182TCDW7074
  • Zoro # G5596893
product price:
$
727.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TCDW7074
Zoro #
G5596893
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
14 13/16 in
Shaft Length
4 1/4 in
Length Less Shaft
10 9/16 in
Height
10 15/16 in
Frame Size
182JM
Shaft Diameter
7/8 in
Wire Rope Length
14 13/16 in
Length
14 13/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
115V AC, 230V AC
Frame
182JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Standards
CE, CSA, UL Recognized
Motor Application
Pump
Motor Efficiency Group
Standard Efficient
Inverter Rated
Not Inverter Rated
Ins. Class
F
Hz
60 Hz
Motor Frame Material
Steel
Frame Material
Steel
Motor Bearings
Ball
Duty
Continuous
Motor Shaft Design
Keyed, Threaded
Max. Ambient Temp.
40 Degrees C
Full Load Amps
23.0/11.5 A
Phase
Single
Nominal Efficiency
75.5 %
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Thermal Protection
None
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
NEMA Design
L
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Weight
87 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Position
F1
Shaft Type
JM Threaded
Application
Pump
Full Load Current @ 60 Hz
23.0/11.5 A
Mounting Position
Horizontal
Efficiency Rating
Standard Efficiency (IE1)
NEMA Design Class
L
Number of Speeds
1
Frequency
60 Hz
Shaft Thread Type
JM
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Insulation Class
F
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.15

Description

Close-Coupled Pump Motor, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 23.0/11.5, Height 10 15/16 in, HP 2, Ins. Class F, Inverter Rated No, Length Less Shaft 10 9/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
