Shop MARATHON

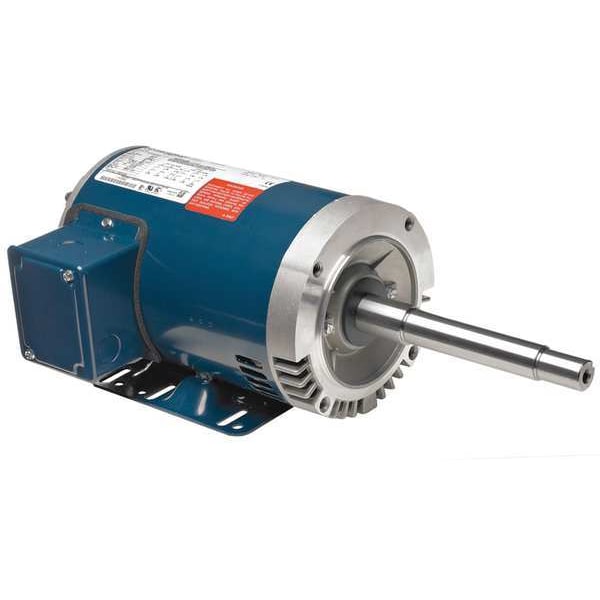

CC Pump Motor, 5 HP, 3505 rpm, 182JP, 3-Ph

  • Mfr # 182TTDBD6012

  • Zoro # G8818677

product price:  $716.99
/ea
Sold in multiples of 2 for $1,433.98
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTDBD6012
Zoro #
G8818677
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
17 11/16 in
Length Less Shaft
10 3/8 in
Shaft Length
7 3/8 in
Shaft Dia.
7/8 in
Body Dia.
8.4 in
Bolt Circle Dia.
5 7/8 in
Height
9 13/16 in
Frame Size
182JP
Bolt Circle Diameter
5 7/8 in
Body Diameter
8.4 in
Shaft Diameter
7/8 in
Wire Rope Length
17 11/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230/460V AC
Frame
182JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Application
Pump
Duty
Continuous
Hz
60 Hz
Phase
Three
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
86.5 %
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Motor Frame Material
Steel
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
CC Number
CC003A
Full Load Amps
13.2/6.6 A
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
None
Motor Sub Application
Close-Coupled Pump
Standards
CE Mark, CSA Certified, UL Recognized
Motor Shaft Design
JP Threaded
Inverter Rated
Inverter Rated
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Weight
83 lb
NEMA Design
A
Usable @ 200V
Not Usable at 200V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Duty Cycle
Continuous
No. of Speeds
1
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Motor Enclosure Type
Open Drip Proof
Shaft Thread Type
JP
Mounting Position
Horizontal
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Shaft Design
Threaded
Application
Pump
Product Type
Pump Motor
Full Load Current @ 60 Hz
13.2/6.6 A
Nameplate Service Factor @ 60 Hz
1.15
Constant Torque Rating
2:1 Constant Torque
NEMA Design Class
A

Description

Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JP, Hz 60 Hz, Full Load Amps 13.2/6.6, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
