Shop MARATHON

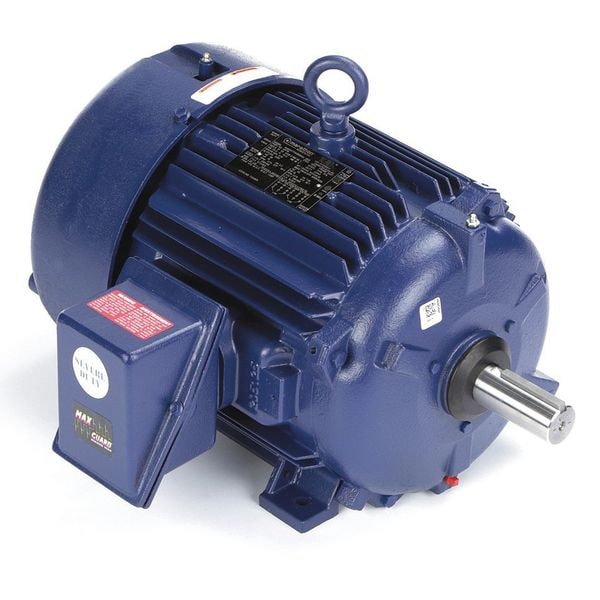

Cooling Tower Motor, Three Phase, 15 HP, 1,775 Nameplate RPM, 230/460V AC, 254T Frame

  • Mfr # 254TTFCD16568
  • Zoro # G8547305
product price:
$
2,347.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
15
Nameplate RPM
1,775
Frame
254T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTFCD16568
Zoro #
G8547305
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
19 1/4 in
Overall Length
23 1/2 in
Shaft Length
4 1/4 in
Shaft Dia.
1 5/8 in
Frame Size
254T
Shaft Diameter
1 5/8 in
Wire Rope Length
23 1/2 in
Length
23 1/2 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
15
Nameplate RPM
1,775
Frame
254T
Motor Shaft Rotation
CW/CCW
Full Load Amps
37.5/18.8 A
Voltage
230V AC, 460V AC
Nominal Efficiency
93.6 %
Conduit Box Position
F1
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CSA (LR2025), IP55, UL (E49747)
Phase
Three
Warranty
1 yr
Motor Application
Cooling Tower
Ambient Temperature
40 Degrees C
Duty
Continuous
Motor Mounting Type
Rigid Base
Motor Frame Material
Cast Iron
Hz
50/60 Hz
Motor Efficiency Group
NEMA Premium Efficient
Motor Thermal Protection
None
CC Number
CC003A
Finish
Epoxy-Coated
Frame Material
Cast Iron
Motor Bearings
Ball
Motor Service Factor
1.15
Ins. Class
F
RPM Range
1,701-1,800
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal or Vertical Shaft Up
Green Certification or Other Recognition
NEMA Premium(R) Rated
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Full Load Amps @ 50Hz
37.5/18.8 A
No. of Speeds
1
Bearing Type
Ball
Application
Cooling Tower
Full Load Current @ 50 Hz
37.5/18.8 A
Insulation Class
F
Full Load Current @ 60 Hz
37.5/18.8 A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal/Vertical Shaft Up
Product Type
Cooling Tower Motor
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Frequency
60/50 Hz

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 15 hp HP, 1,775 RPM Nameplate RPM, 254T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 37.5/18.8 A Full Load Amps, Three Phase, 60/50 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 5/8 in, Shaft Length 4 1/4 in
