Shop MARATHON

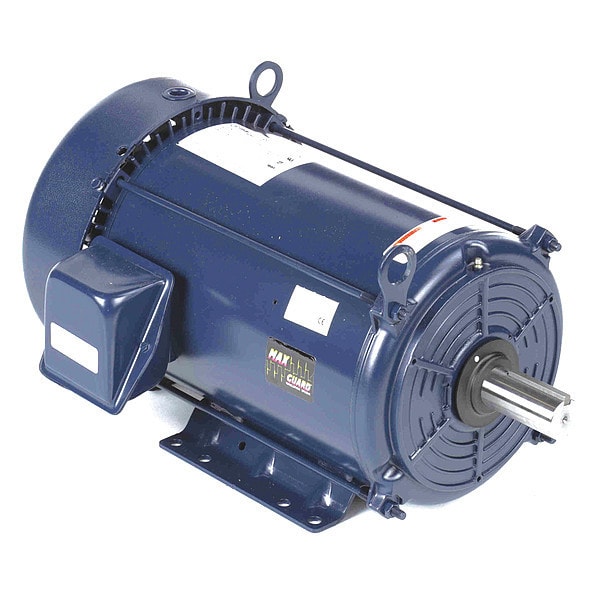

General Purpose Motor, Three Phase, 10 HP, 3525 rpm Nameplate RPM, 230/460V AC, 215T Frame

  • Mfr # 215TTFBD6002
  • Zoro # G6571938
product price:
$
1,131.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
10
Nameplate RPM
3525 rpm
Frame
215T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFBD6002
Zoro #
G6571938
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
20 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Length
3 1/2 in
Shaft Dia.
1 3/8 in
Length Less Shaft
16 3/4 in
Shaft Diameter
1 3/8 in
Frame Size
215T
Wire Rope Length
20 1/4 in
Length
20 1/4 in

Details

Item
General Purpose Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
10
Nameplate RPM
3525 rpm
Frame
215T
Motor Shaft Rotation
CW/CCW
Full Load Amps
23.6/11.8 A
Voltage
230V AC, 460V AC
Nominal Efficiency
90.2 %
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
Ins. Class
F
Inverter Rated
No
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
No. of Speeds
1
Motor Service Factor
1.15
Motor Mounting Type
Rigid Base
RPM Range
3001-3600
Hz
50/60 Hz
Motor Application
General Purpose
Duty
Continuous
RPM Group
3001-3600
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
RPM @ 50Hz
3525 rpm
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
23.6/11.8 A
Service Factor @ 50Hz
1.15
HP @ 50Hz
10 hp
Usable @ 208V
Not Usable at 208V
Voltage @ 50Hz
230/460
Duty Cycle
Continuous
Nameplate Service Factor @ 50 Hz
1.15
Frequency
60/50 Hz
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Not Inverter Rated
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Nameplate Horsepower @ 50 Hz
10 hp
Insulation Class
F
Full Load Current @ 50 Hz
23.6/11.8 A
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
23.6/11.8 A
Application
General Purpose
Frame Material
Steel
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Manufacturers Warranty
1 yr
Nameplate RPM @ 50 Hz
955/960/965 RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3525 rpm, Frame 215T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
