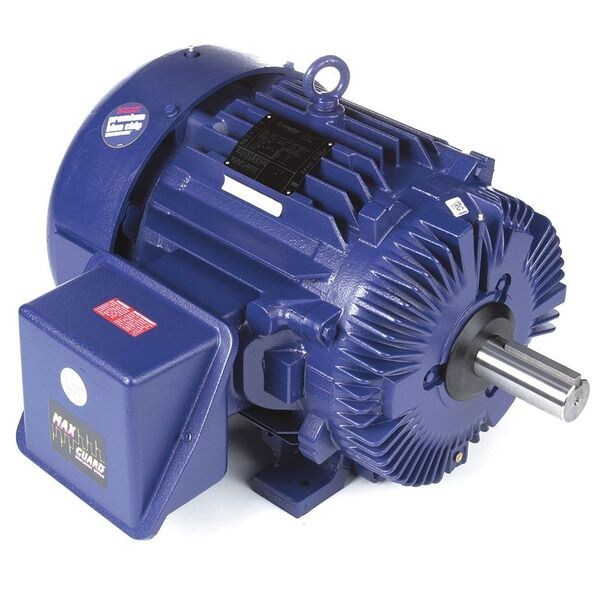

General Purpose Mtr, 3-Ph, TEFC, 60 HP
Mfr # 364TTFCD6536
Zoro # G2245358
product price: $8,419.99
/ea
Item requires special delivery charges. A $345.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
60 hp
RPM Range
1,701-1,800
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
364TTFCD6536
Zoro #
G2245358
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
33 7/16 in
Shaft Length
5 7/8 in
Shaft Dia.
2 3/8 in
Length Less Shaft
27 9/16 in
Lead Length
3 in
Manufacturers Warranty Length
1 yr
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 60 hp HP, Nameplate RPM 1,782 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 69 A, 364T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
